Description
- High-Voltage DC Input: Converts power from a 60V, 72V, 96V, or 110V DC battery system into stable AC power. Higher DC voltage reduces input current for the same output power. The selected input voltage must match the battery system; this is not an auto-detect model.
- Pure Sine Wave Output: Delivers clean, stable AC power for compatible electronics, appliances, tools, and motor-driven loads in EV, off-grid, telecom backup, and fixed battery applications.
- No-Remote Version: Uses the inverter's built-in on/off switch for local operation. It is a practical choice when the inverter is installed where the control panel is easy to reach and no remote switch is required.
- Flexible Configuration: Select the required power, DC input voltage, and AC output voltage from the Shopify product options. Available power ratings range from 500W to 5000W.
- Built-In Protection: Low-voltage alarm and shutdown, over-voltage shutdown, overload shutdown, over-temperature protection, short-circuit protection, and fuse protection help protect the inverter and connected system.
Standard order configuration: 60Hz output with a US-style Type B socket. Need 50Hz or another socket type? Contact us before ordering so we can confirm availability and the correct configuration.
Designed for high-voltage DC systems
- 60V DC: electric scooters, electric motorcycles, light EVs, and custom battery banks.
- 72V DC: electric vehicles, mobility equipment, industrial battery systems, and off-grid installations.
- 96V DC: larger EV, industrial, solar-storage, and backup battery platforms.
- 110V DC: telecom, substation, rail, industrial-control, and professional DC backup systems.
Factory Manufacturing & Testing
Reliable Electric has focused on power inverter and solar power solutions since 2009, with inverter assembly, functional testing, aging verification, final inspection, and technical support.
Quality & Compliance Documentation
Our documentation includes ISO 9001 materials and product-related CE, EMC, RoHS, FCC, and UL 458 certificates or test reports. Applicability depends on the exact model and destination market; contact us if documents are required.
Warranty
12 Months for Non-artificial damage.
Specification
| Power option | 500W | 1000W | 1500W | 2000W | 2500W | 3000W | 3500W | 4000W | 5000W |
|---|---|---|---|---|---|---|---|---|---|
| Power | |||||||||
| Rated / continuous power | 500W | 1000W | 1500W | 2000W | 2500W | 3000W | 3500W | 4000W | 5000W |
| Peak / surge power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | 8000W | 10000W |
| Input | |||||||||
| DC input voltage | 60VDC / 72VDC / 96VDC / 110VDC | ||||||||
| DC input voltage range | 50-135VDC | ||||||||
| No-load current draw | <10W | <15W | <15W | <15W | <30W | <30W | <35W | <35W | <40W |
| Conversion efficiency | >90% | ||||||||
| DC connector | Cables with terminals | ||||||||
| Output | |||||||||
| AC output voltage | 100VAC / 110VAC / 120VAC / 220VAC / 230VAC / 240VAC | ||||||||
| Waveform | Pure sine wave | ||||||||
| Output frequency | 60Hz standard / 50Hz by request | ||||||||
| AC regulation | 3% | ||||||||
| Protection | |||||||||
| Low-voltage alarm | 50.5-51.5V (60V) / 60.5-61.5V (72V) / 76-77V (96V) / 91-93V (110V) | ||||||||
| Low-voltage shutdown | 50-51V (60V) / 60-61V (72V) / 74-76V (96V) / 90V (110V) | ||||||||
| Overload protection | Shut off output | ||||||||
| Over-voltage shutdown | 75V (60V) / 90V (72V) / 115V (96V) / 135V (110V) | ||||||||
| Over-temperature protection | Shut off automatically | ||||||||
| Fuses / short circuit | Short-circuit protection | ||||||||
| Environment | |||||||||
| Working temperature | -10°C to +50°C | ||||||||
| Working humidity | 20%-90% RH, non-condensing | ||||||||
| Storage temperature | -10°C to +70°C | ||||||||
| Features & connections | |||||||||
| Start / cooling | Soft start / cooling fan | ||||||||
| Total harmonic distortion | THD <5% | ||||||||

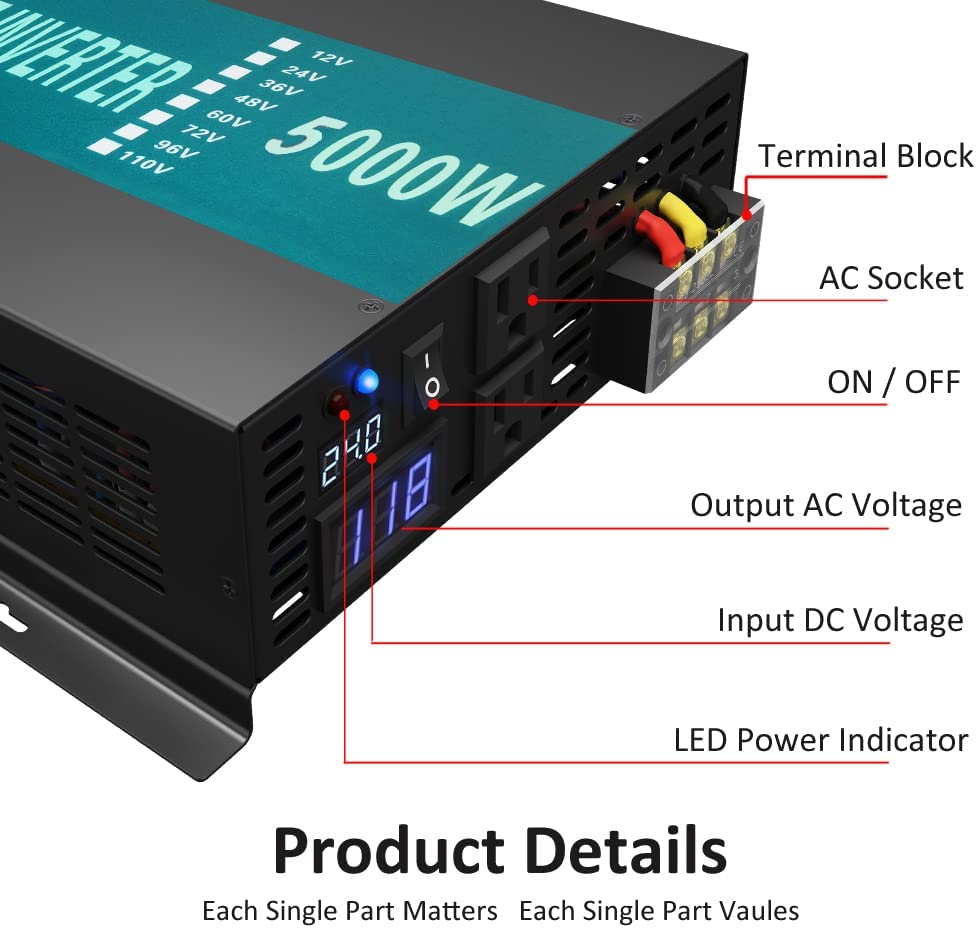

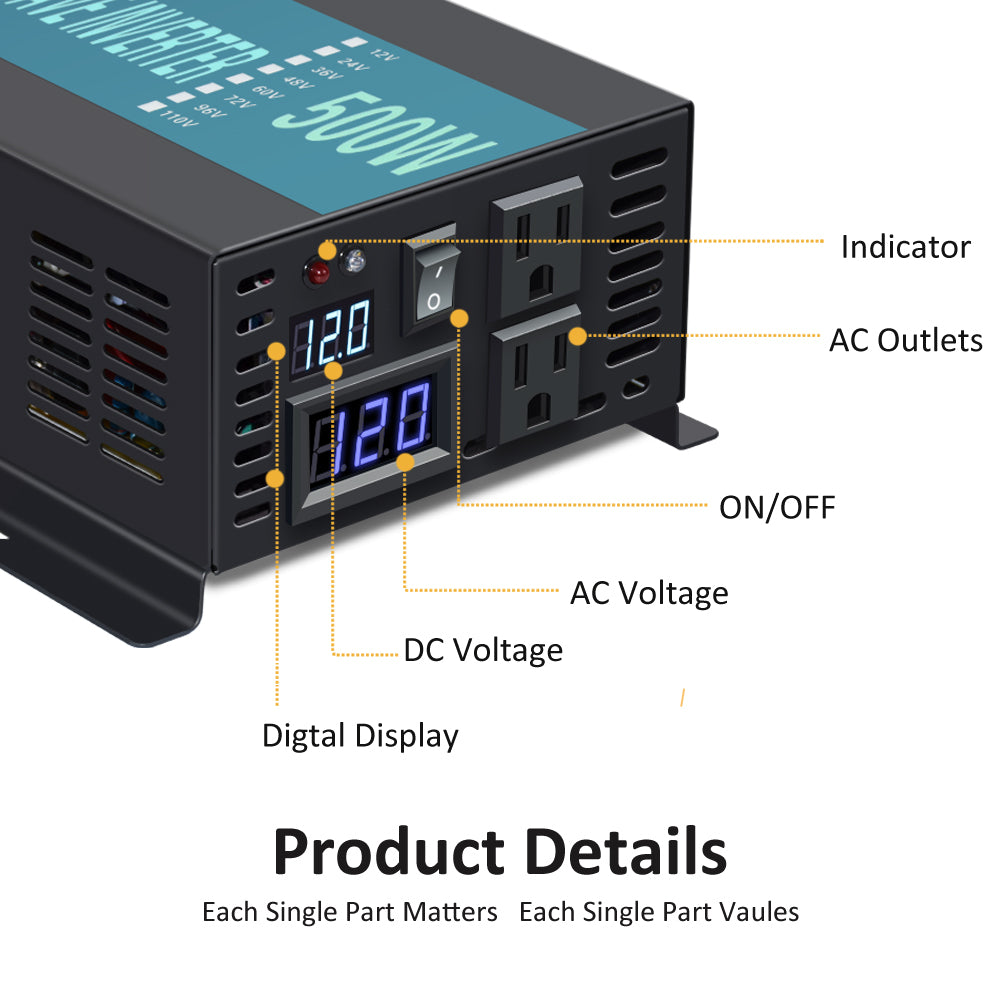

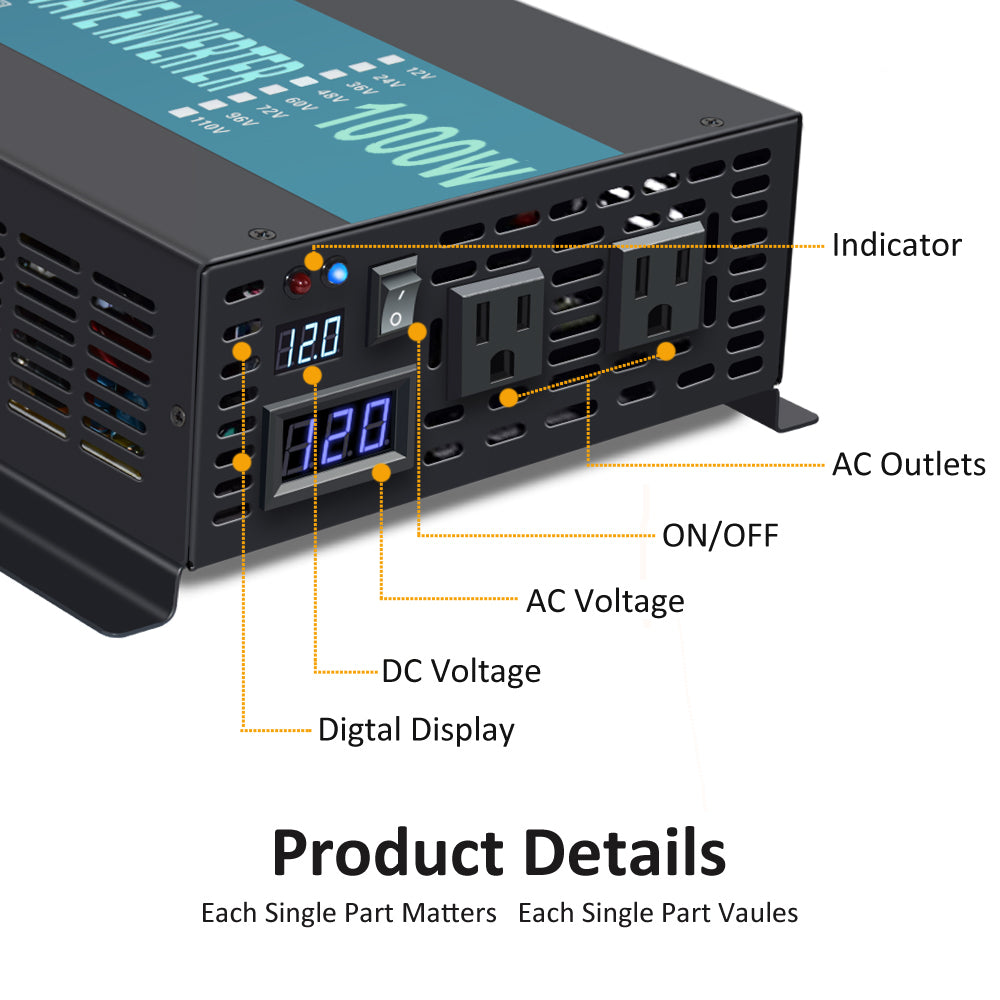

| Display and controls | DC input LED display / AC output LED display / fault indicator / status indicator / on/off switch | ||||||||
| Connections and physical features | Outlet / air vents / grounding screw / hardwire terminal / cooling fan / battery positive input / battery negative input | ||||||||
| Remote / communication options | No remote included; local on/off switch on the inverter. Remote and RS485 options are not included in this product link. | ||||||||
| Other series features | 60 x 60 mm temperature-controlled cooling fans / battery compatibility / custom socket options / 9 protection functions | ||||||||
| AC socket standard | US-style Type B socket standard / other socket types by request | ||||||||
| Packaging | |||||||||
| Packing type | Carton | ||||||||

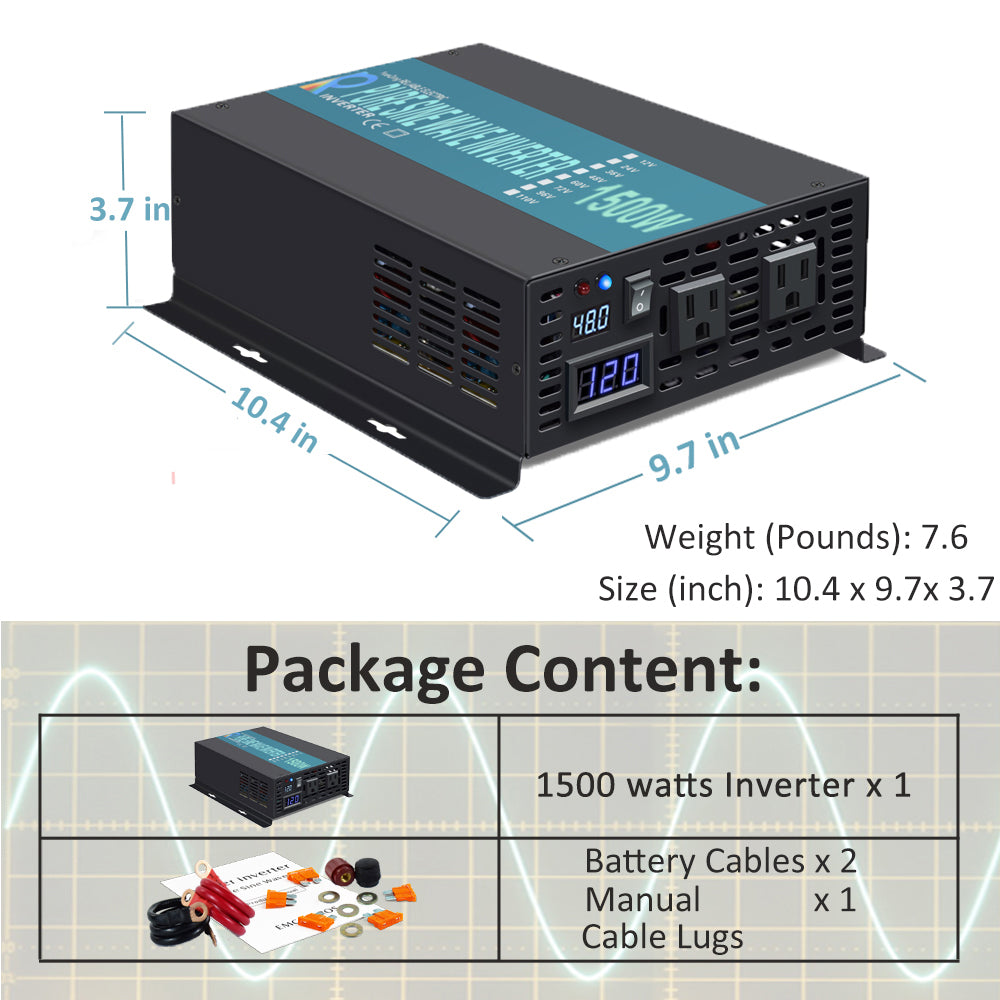

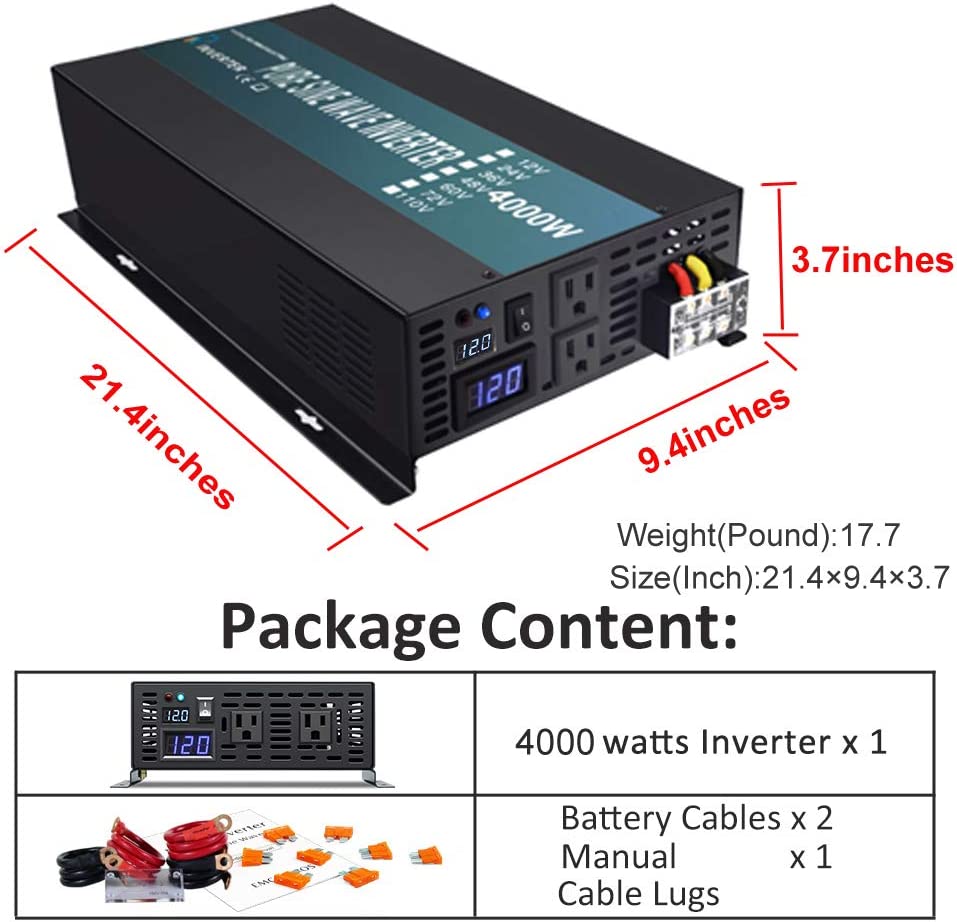

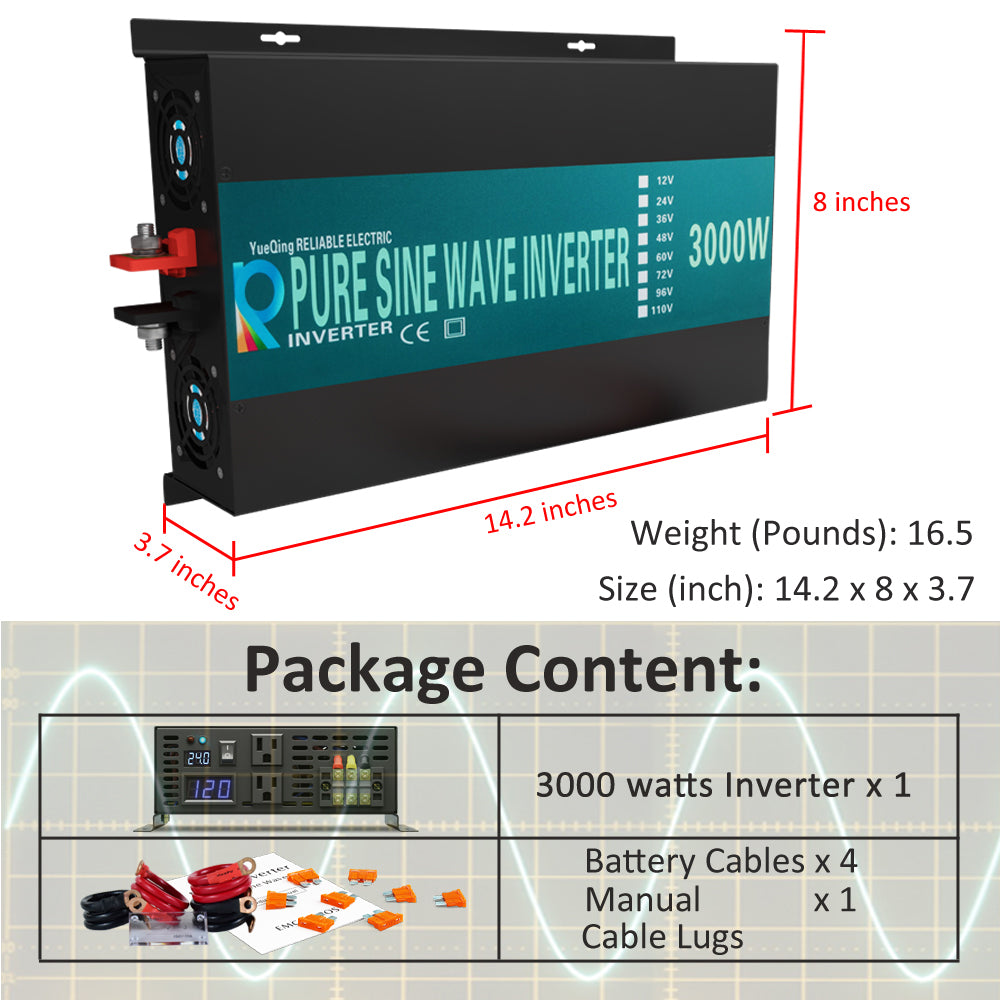

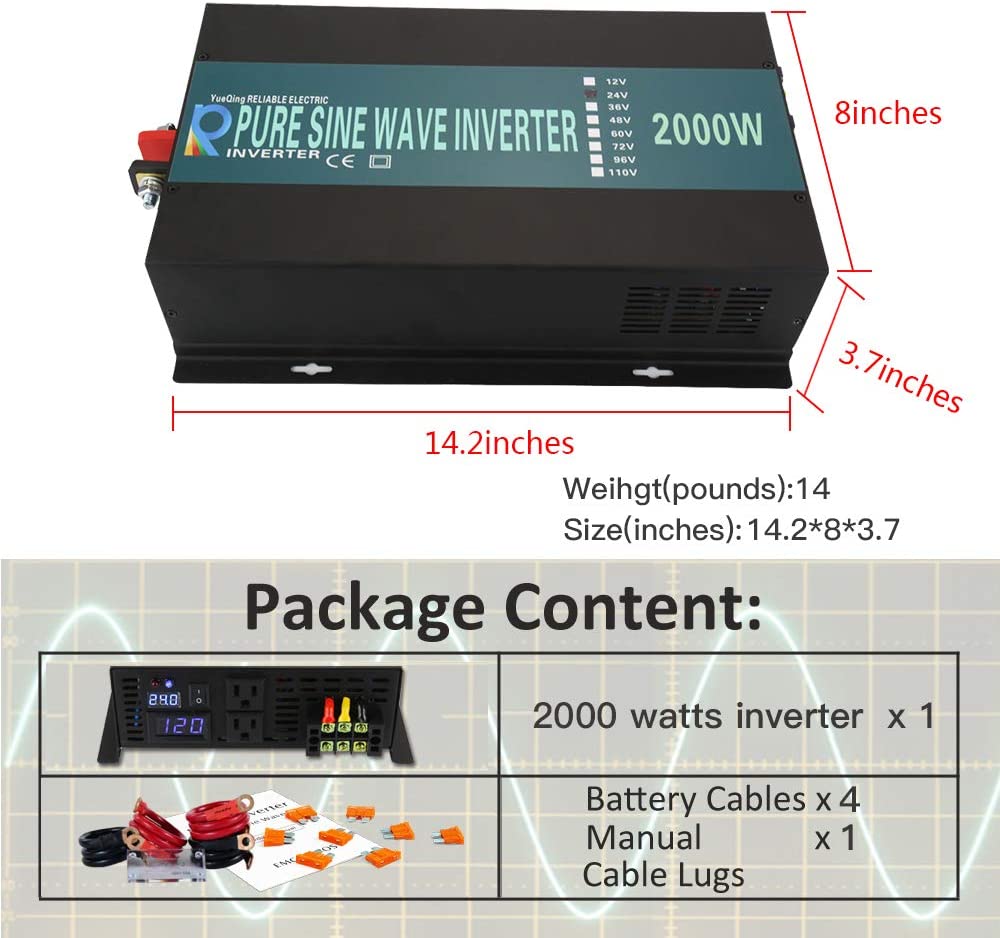

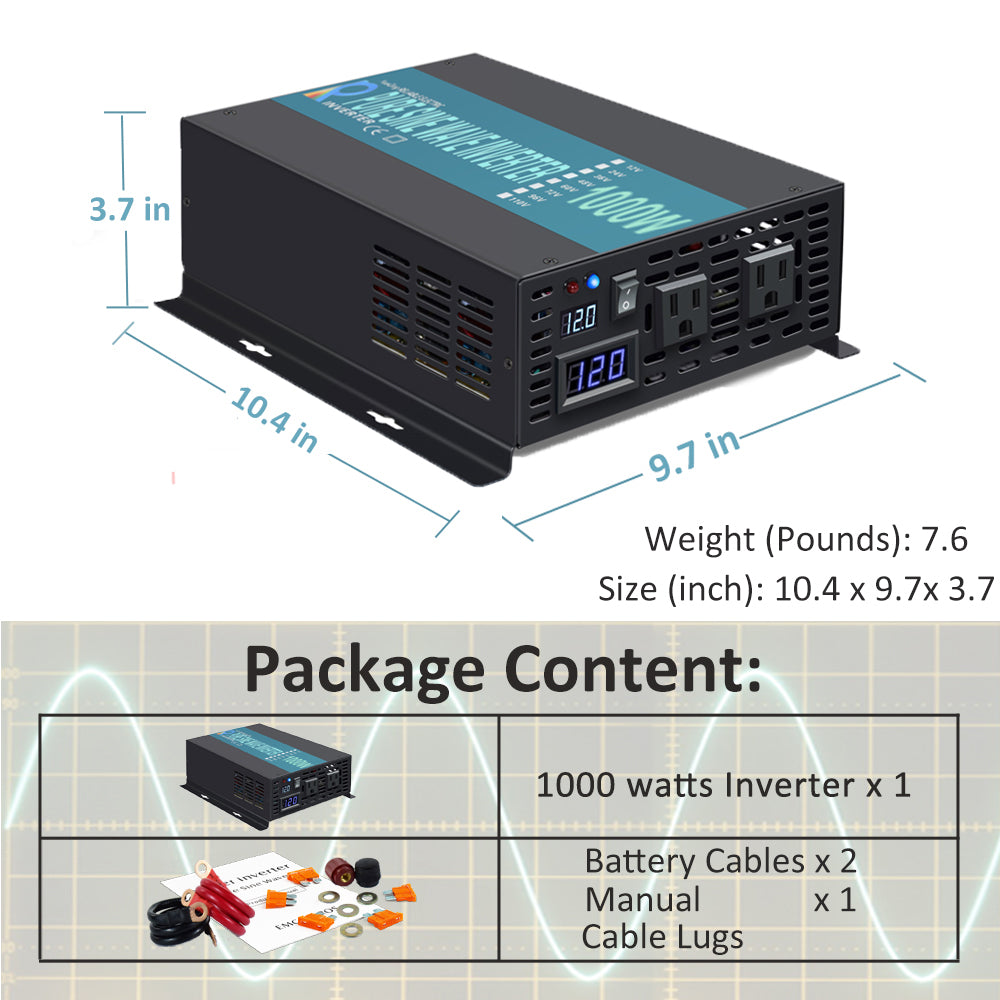

| Product size (in) | 10.7 x 7.8 x 3.7 | 11.3 x 9.7 x 3.7 | 11.3 x 9.7 x 3.7 | 16.2 x 9.7 x 3.7 | 16.2 x 9.7 x 3.7 | 16.2 x 9.7 x 3.7 | 20.4 x 9.7 x 3.7 | 20.4 x 9.7 x 3.7 | 20.4 x 9.7 x 3.7 |
| Net weight | 2.4 kg | 3.6 kg | 3.6 kg | 5.2 kg | 5.2 kg | 5.2 kg | 7.9 kg | 7.9 kg | 7.9 kg |
| Gross weight | 2.7 kg | 4.3 kg | 4.3 kg | 6.3 kg | 6.3 kg | 6.3 kg | 8.9 kg | 8.9 kg | 8.9 kg |

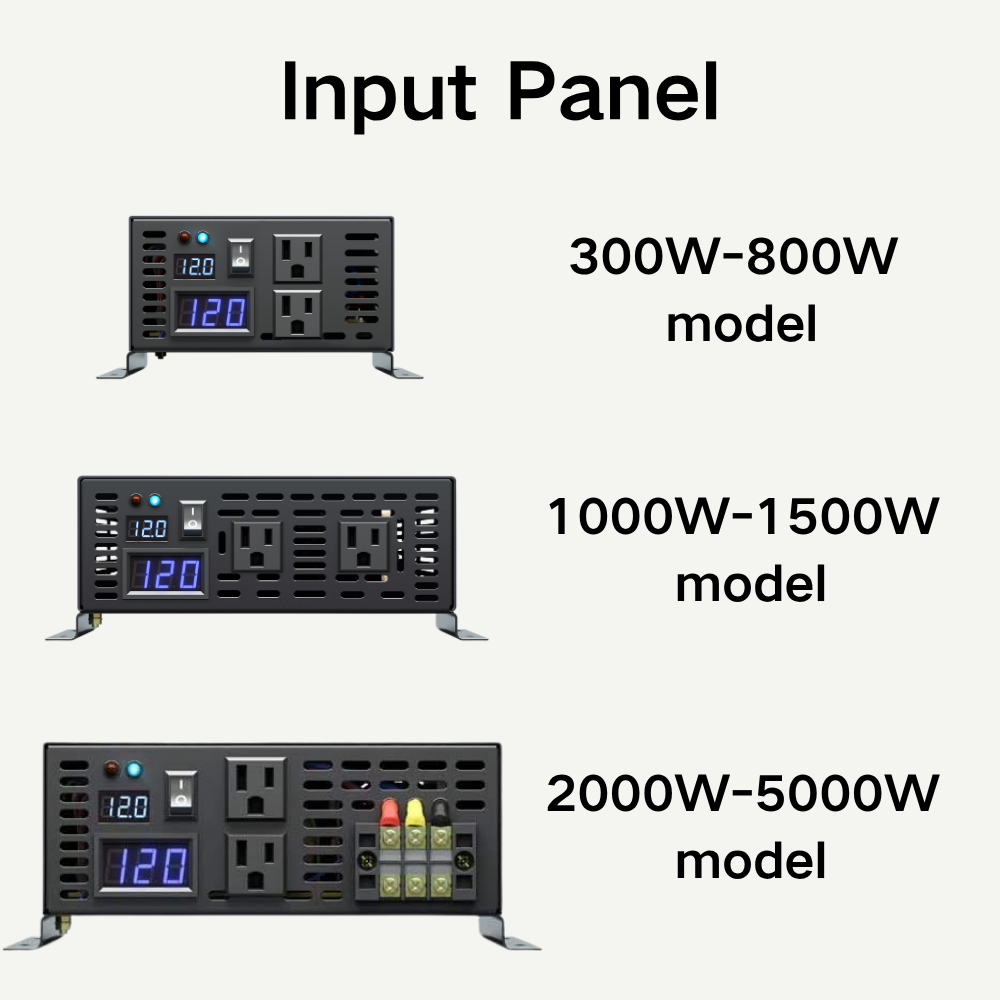

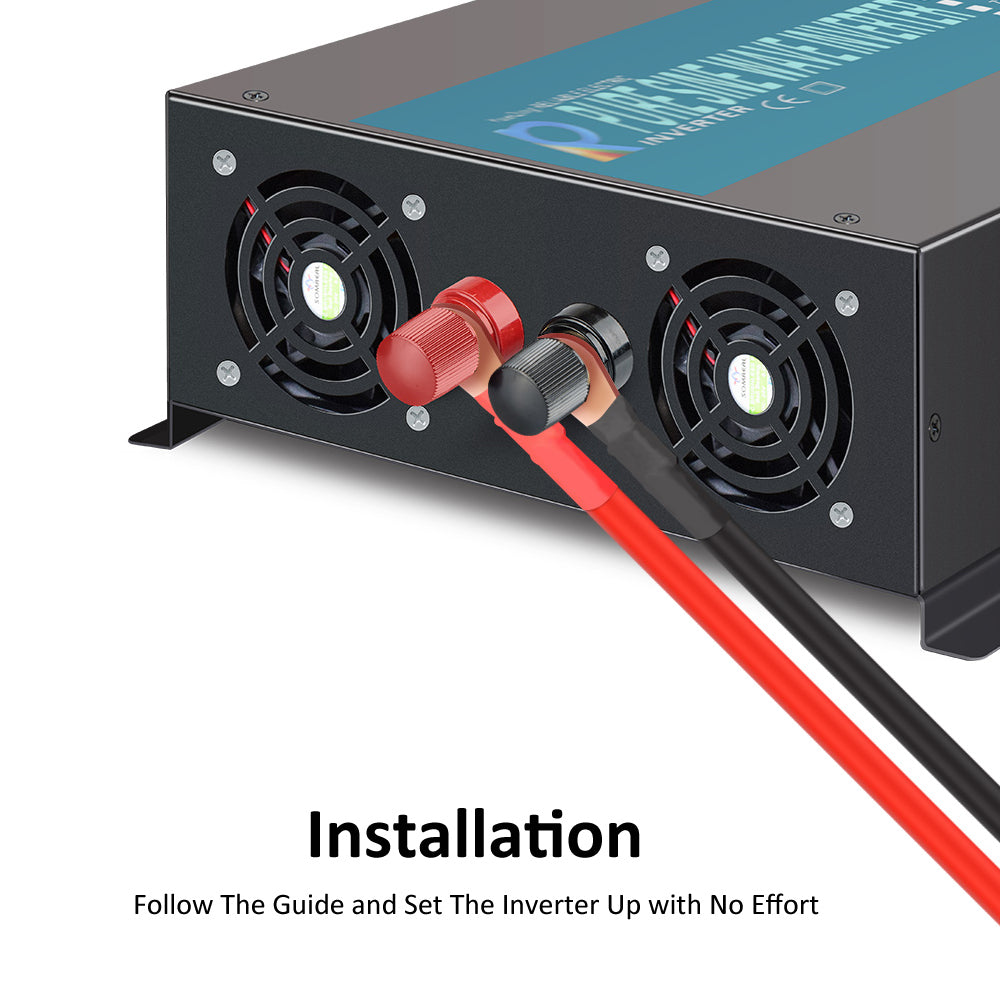

DC Input Panel by Power Rating
Video Demonstration
Frequently Asked Questions
Which battery voltage should I choose for this high-voltage inverter?
Choose the DC input option that matches your battery system: 60VDC, 72VDC, 96VDC, or 110VDC. A 60V inverter is not interchangeable with a 72V, 96V, or 110V battery bank, and the input voltage is not auto-detected.
What does a 60V inverter or 72V inverter power?
A correctly matched 60V inverter or 72V inverter converts battery power into AC electricity for compatible appliances, tools, electronics, and motor loads. Confirm the total continuous wattage and startup surge of your equipment before choosing a power rating.
Is a 110V inverter suitable for my battery system?
The 110V inverter option is designed for a nominal 110VDC battery system. It is not a 110V-to-12V converter or a universal input unit, so check the battery voltage and the required AC output voltage before ordering.
Is this a 72V pure sine wave inverter?
Yes. The RBP family uses pure sine wave output, including the 72V input option. Pure sine wave power is suitable for compatible electronics, appliances, chargers, and motor-driven loads when the voltage and wattage are correctly matched.
How do I choose the inverter wattage?
Add the running wattage of the devices you will use at the same time, then allow extra capacity for startup loads from refrigerators, pumps, compressors, and other motors. Available power options range from 500W to 5000W.
What are the standard frequency and outlet?
The standard order is 60Hz output with a US-style Type B socket. Need 50Hz or another socket type? Contact us before ordering so we can confirm availability and the correct configuration.
Does this no-remote inverter include a remote control?
No. This product link is for the no-remote version and is operated with the built-in on/off switch. Choose the wireless-remote or wired-remote product link if remote operation is required.
Can I connect solar panels directly to the inverter?
No. Connect the inverter to a suitable regulated battery bank or DC bus. A solar charge controller is required between PV panels and the battery system.
What should I confirm before ordering?
Confirm the nominal battery voltage, selected inverter wattage, AC output voltage, frequency, outlet type, and the largest startup load. If you need a 50Hz output or a non-Type-B socket, contact us before placing the order.
