Description
- High-Input DC Systems: Converts a matched 60V, 72V, 96V, or 110V DC battery system into stable AC power. Select the exact nominal battery voltage; this inverter is not an auto-detect model.
- 5000W-10000W Heavy-Duty Output: Choose the continuous power rating that matches your combined load and motor-starting surge. The RBH series is designed for large appliances, tools, equipment, EV systems, and off-grid backup power.
- Pure Sine Wave: Clean AC output is suitable for compatible electronics, appliances, chargers, compressors, pumps, and motor-driven loads.
- No-Remote Version: Local on/off control is provided on the inverter panel. This version is suited to installations where the unit remains within reach.
- Heavy-Duty Protection: Low-voltage alarm and shutdown, over-voltage shutdown, overload shutdown, automatic over-temperature shutdown, short-circuit protection, soft start, cooling fans, and spark-proof design help protect the system.
Standard order configuration: 60Hz output with a US-style Type B socket. Need 50Hz or another socket type? Contact us before ordering so we can confirm availability and the correct configuration.
Designed for high-voltage DC systems

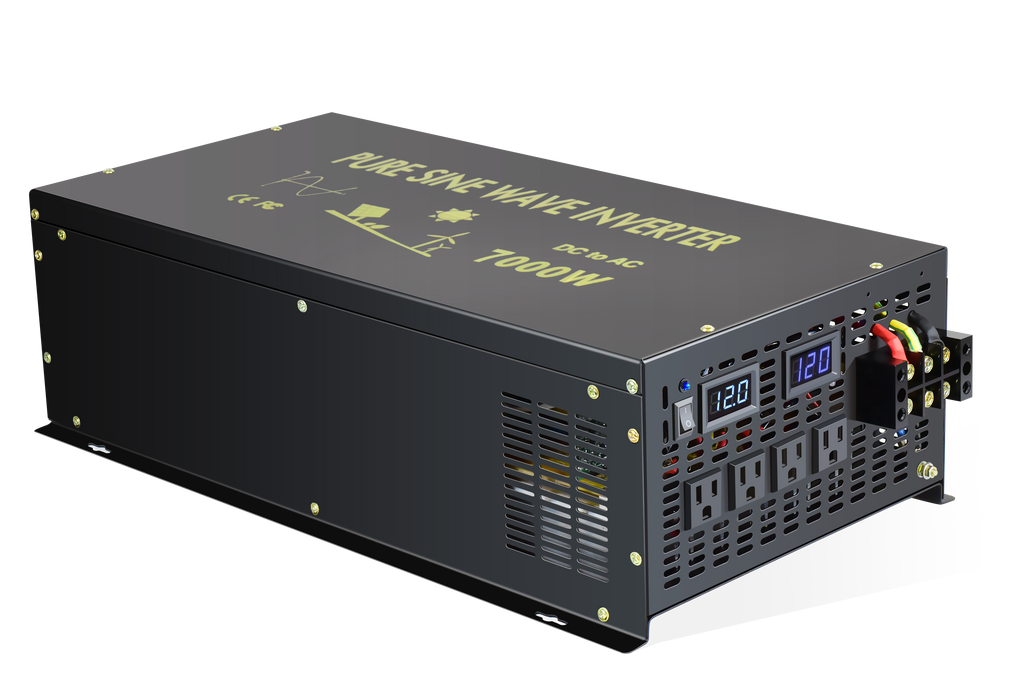

The RBH high-input inverter is intended for large battery banks, electric vehicles, industrial equipment, fixed off-grid systems, and backup power installations that require 5kW-10kW continuous output.
Factory Manufacturing & Testing
Reliable Electric has focused on power inverter and solar power solutions since 2009, with inverter assembly, functional testing, aging verification, final inspection, and technical support.
Quality & Compliance Documentation
Our documentation includes ISO 9001 materials and product-related CE, EMC, RoHS, FCC, and UL 458 certificates or test reports. Applicability depends on the exact model and destination market; contact us if documents are required.
Warranty
12 Months for Non-artificial damage.
Specification
| Parameter | 5000W | 6000W | 7000W | 8000W | 10000W |
|---|---|---|---|---|---|
| Input | |||||
| DC input voltage | 60VDC / 72VDC / 96VDC / 110VDC | ||||
| DC input voltage range | 50-75VDC (60V) / 60-90VDC (72V) / 75-115VDC (96V) / 90-135VDC (110V) | ||||
| No-load current draw | <40W | <40W | <40W | <40W | <40W |
| Efficiency | >90% | ||||
| DC connector | Cables with terminals | ||||
| Output | |||||
| Rated / continuous power | 5000W | 6000W | 7000W | 8000W | 10000W |
| Peak / surge power | 10000W | 12000W | 14000W | 16000W | 20000W |
| AC output voltage | 100VAC / 110VAC / 120VAC or 220VAC / 230VAC / 240VAC | ||||
| Frequency | 60Hz standard / 50Hz by request | ||||
| Waveform | Pure sine wave | ||||
| AC regulation | 3% | ||||

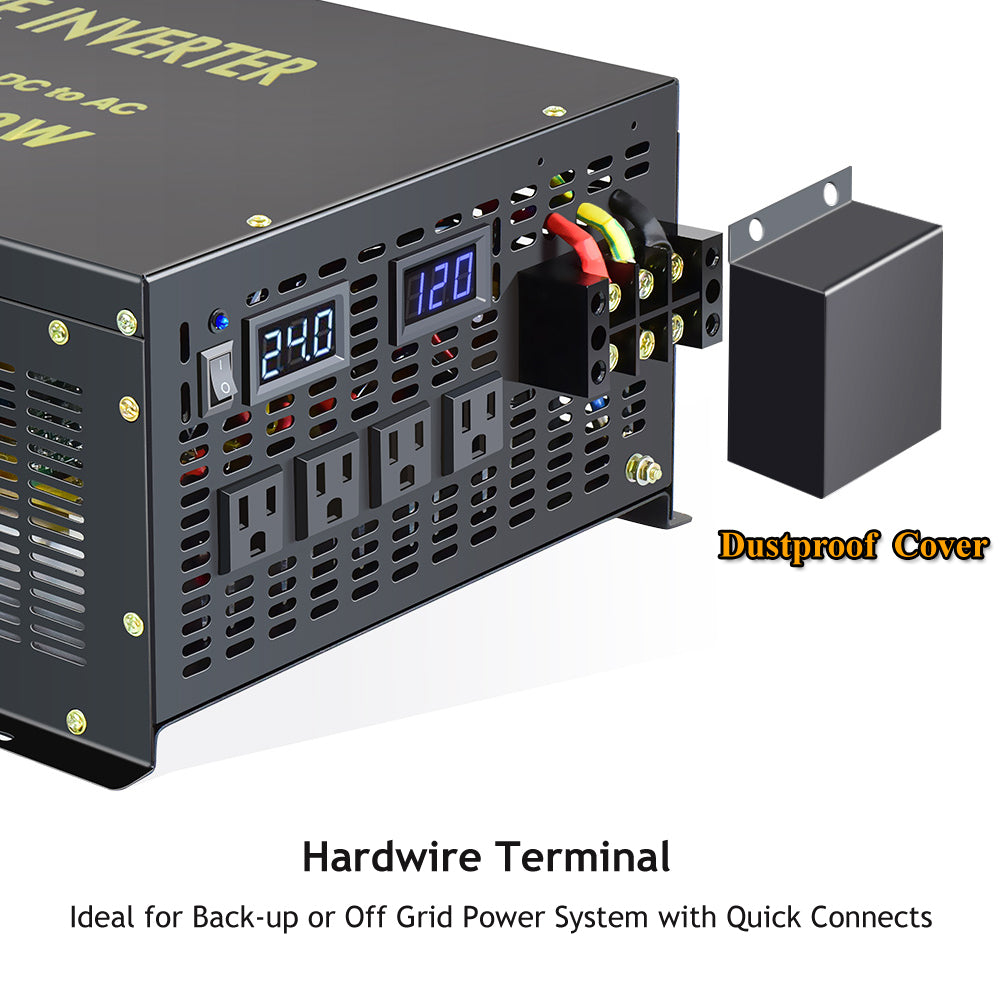

| AC connection layout | 4 AC outlets + hardwire terminal | ||||
| Protection | |||||
| Low-voltage alarm | 50.5-51.5V (60V) / 60.5-61.5V (72V) / 76-77V (96V) / 91-93V (110V) | ||||
| Low-voltage shutdown | 50-51V (60V) / 60-61V (72V) / 74-76V (96V) / 90V (110V) | ||||
| Over-voltage shutdown | 75V (60V) / 90V (72V) / 115V (96V) / 135V (110V) | ||||
| Overload / over-temperature | Shut off output / shut off automatically | ||||
| Fuses / short circuit | Short-circuit protection | ||||
| Environment & packaging | |||||
| Working temperature | -10°C to +50°C | ||||
| Working humidity | 20%-90% RH, non-condensing | ||||
| Storage temperature | -10°C to +70°C | ||||

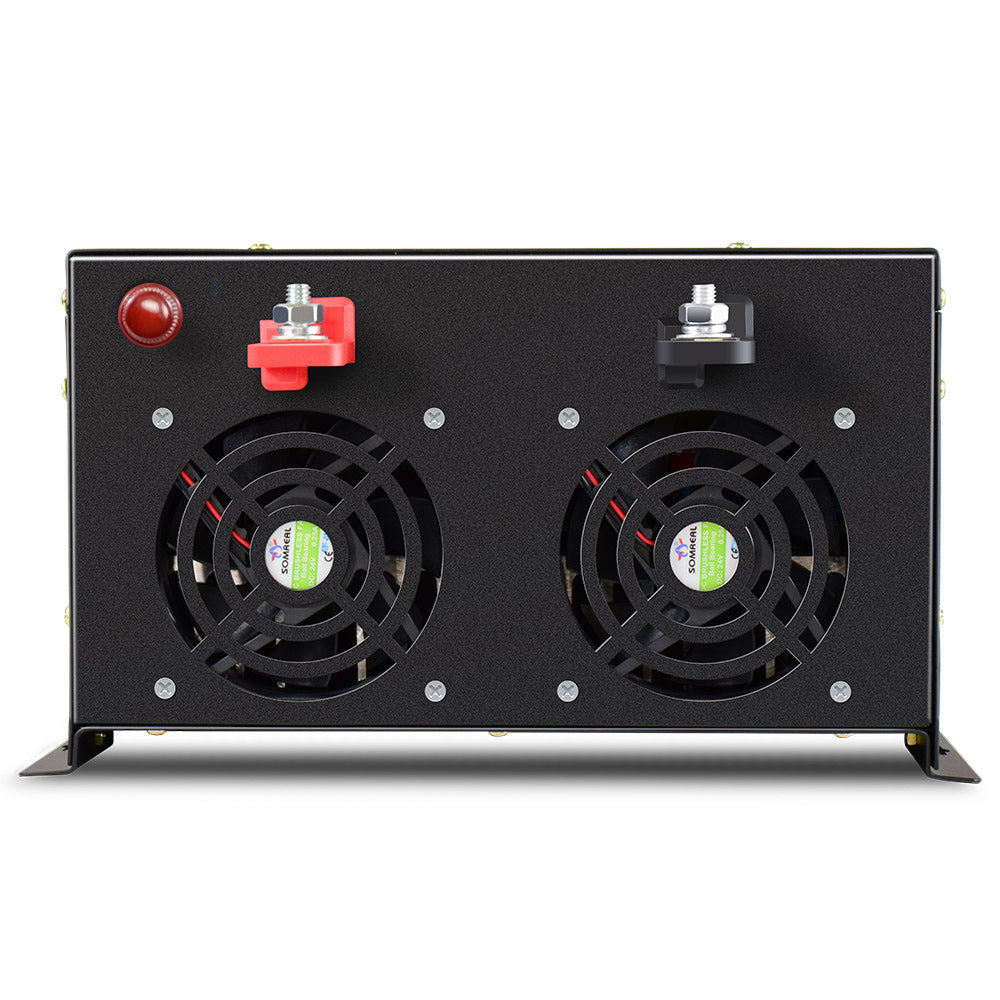

| Start / cooling | Soft start / cooling fan | ||||
| Total harmonic distortion | THD <5% | ||||
| Product size (in) | 21.8 x 11 x 6.3 | 26.1 x 11 x 6.3 | |||
| Net weight | 12.5 kg | 12.7 kg | 17.1 kg | 17.2 kg | 17.5 kg |
| Gross weight | 15 kg | 15.1 kg | 19 kg | 19.2 kg | 19.5 kg |
| Packing type | Carton | ||||
| Remote option | No remote included; local on/off switch on the inverter. | ||||
Video Demonstration
Frequently Asked Questions
Which battery voltage should I choose?
Choose 60VDC, 72VDC, 96VDC, or 110VDC to match the nominal battery system exactly. The input is not auto-detected.
How do I choose the power rating?
Add the running watts of all devices used together and allow extra capacity for motor startup. Available options are 5000W, 6000W, 7000W, 8000W, and 10000W.
What can an RBH high-input inverter power?

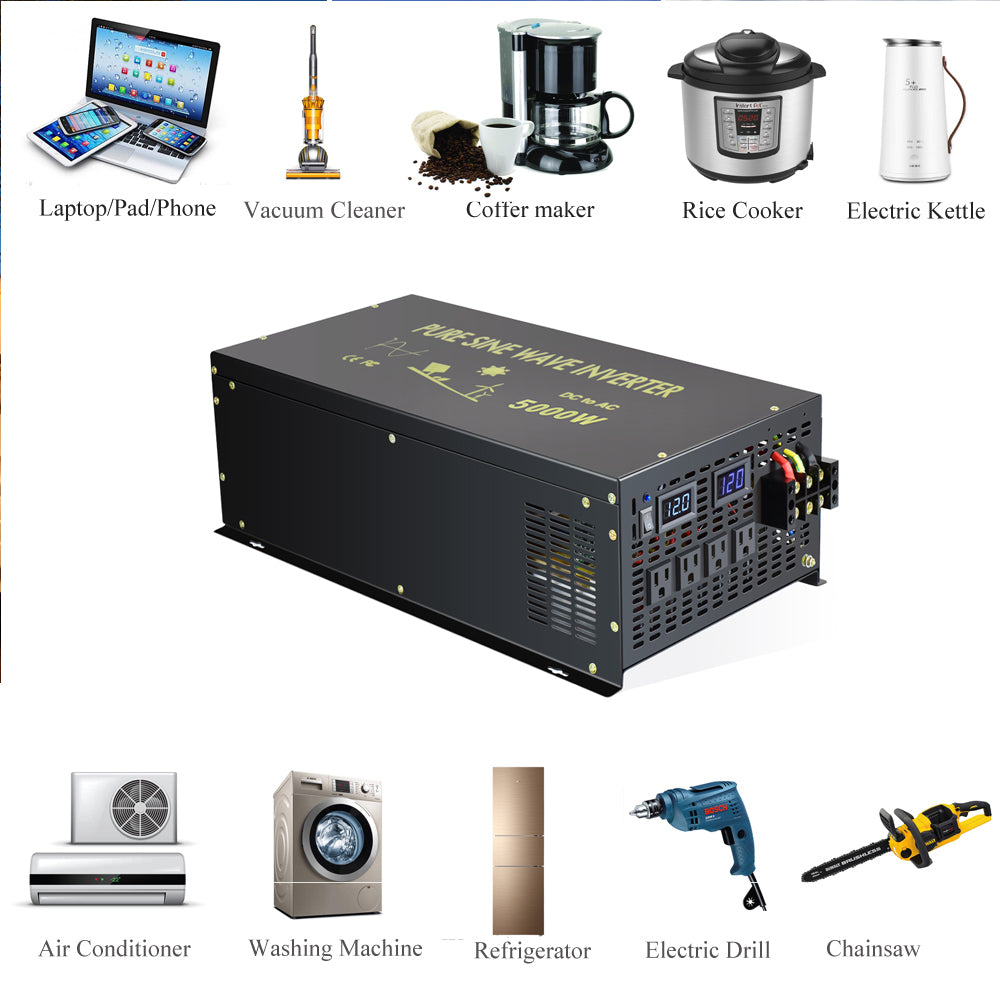

A correctly matched RBH pure sine wave inverter can supply compatible appliances, tools, compressors, pumps, EV equipment, and off-grid loads within its rated capacity.
What are the standard frequency and outlet?
The standard order is 60Hz output with a US-style Type B socket. Need 50Hz or another socket type? Contact us before ordering.
Does this link include a remote?
No. This is the no-remote version with local panel control. Separate wired-remote and wireless-remote product links are available.
Why does the panel vary by wattage?

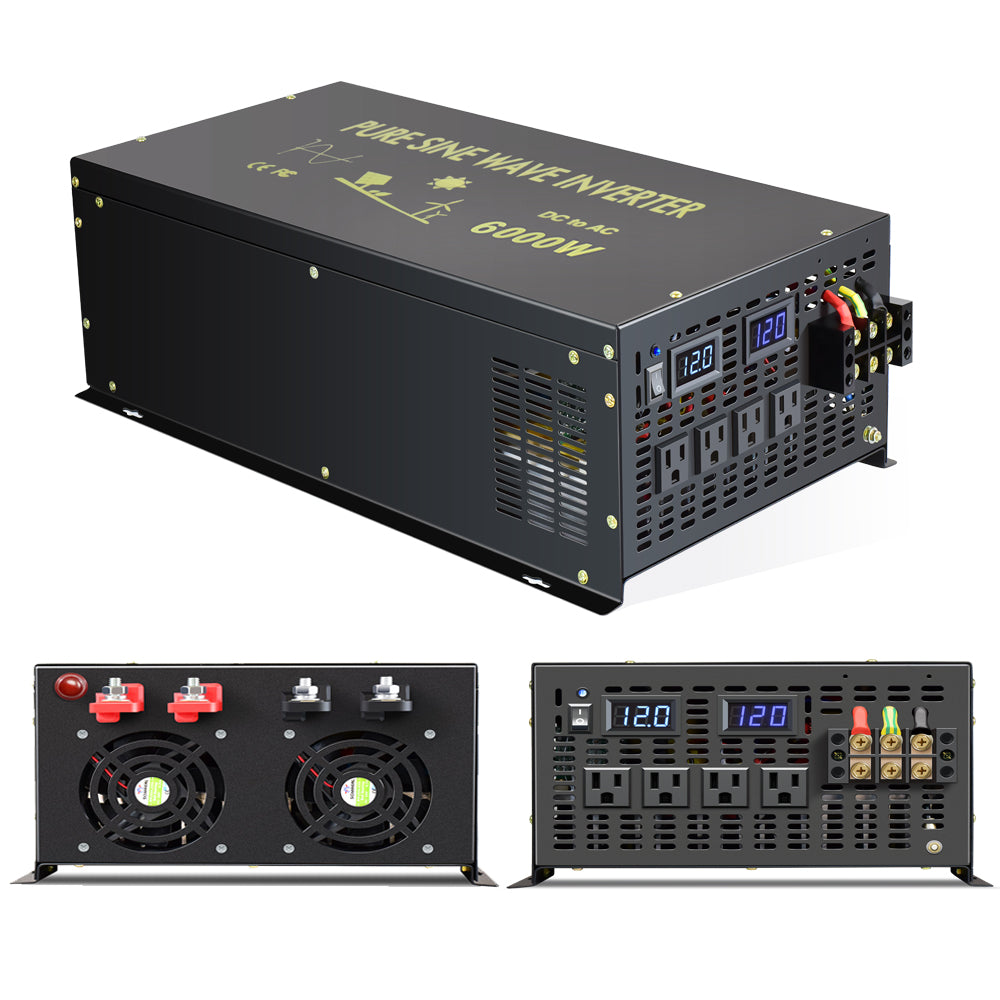

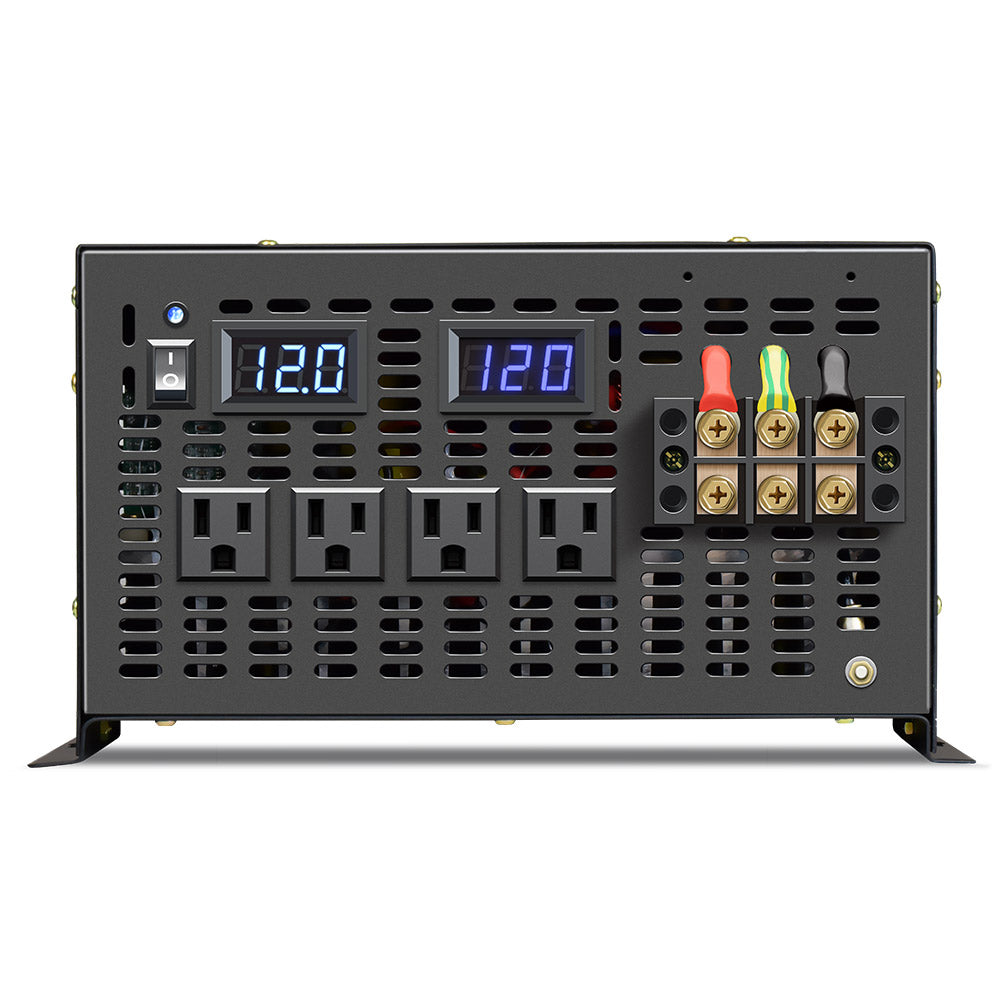

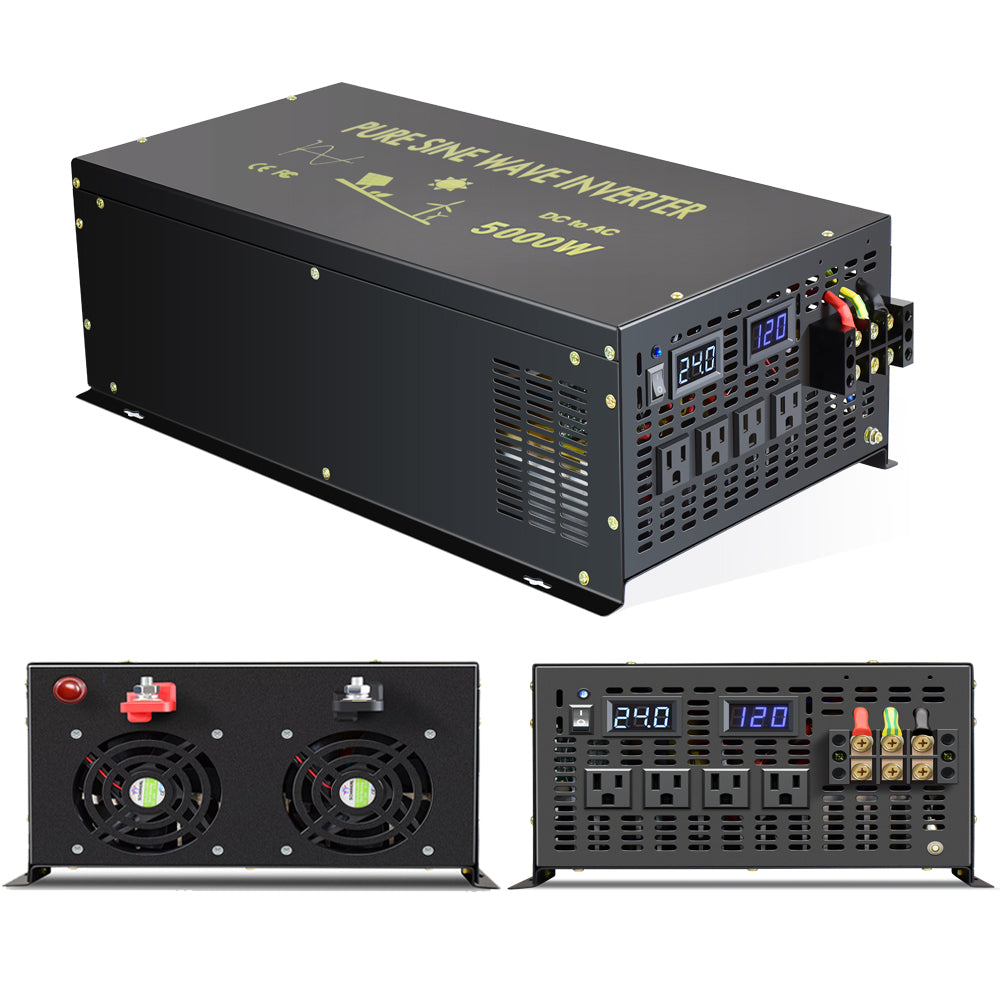

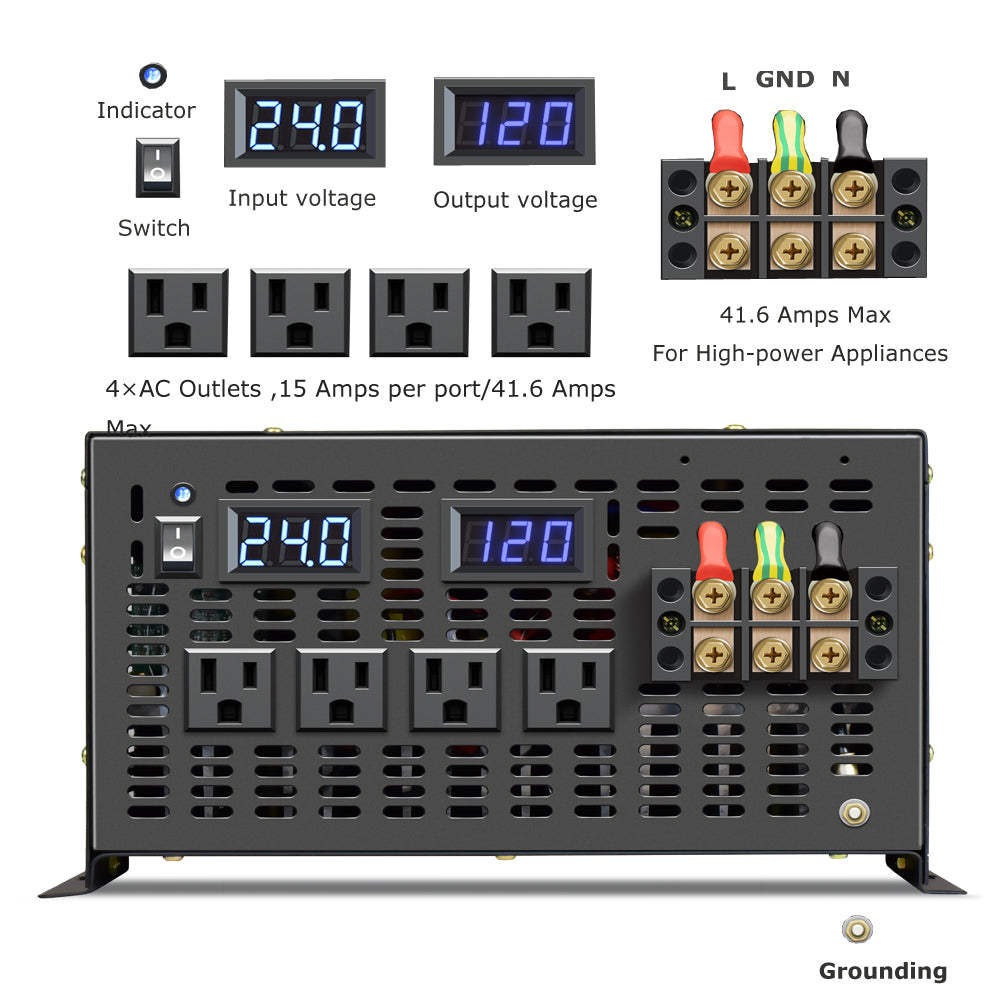

Higher-power models use different fan, terminal, outlet, and hardwire layouts. Check the panel image for the selected model before installation.
Can I connect solar panels directly?
No. Use a suitable regulated battery bank or DC bus; a solar charge controller is required between PV panels and the battery.
What protection is included?
The inverter includes low-voltage alarm and shutdown, over-voltage shutdown, overload, over-temperature, short-circuit, fuse, and soft-start protection.
What should I confirm before ordering?
Confirm battery voltage, continuous load, largest startup load, AC output voltage, frequency, outlet type, and panel layout. Contact us for 50Hz or non-Type-B socket requirements.
