Description
- DeWalt 20V Battery Compatibility: This WZRELB ETP battery power inverter is compatible with DeWalt 20V MAX battery models DCB200, DCB201, DCB203, DCB204, DCB205 and DCB206. Confirm the exact battery model before ordering; contact us about any model not listed. Insert one to four compatible batteries to create a compact portable power station for camping, RV trips, jobsites, vehicles, and home outages.
- 600W Pure Sine Wave Output: One battery supports up to 250W. Insert two or more compatible batteries to unlock up to 600W continuous output, subject to battery condition, discharge capability, and connected load.

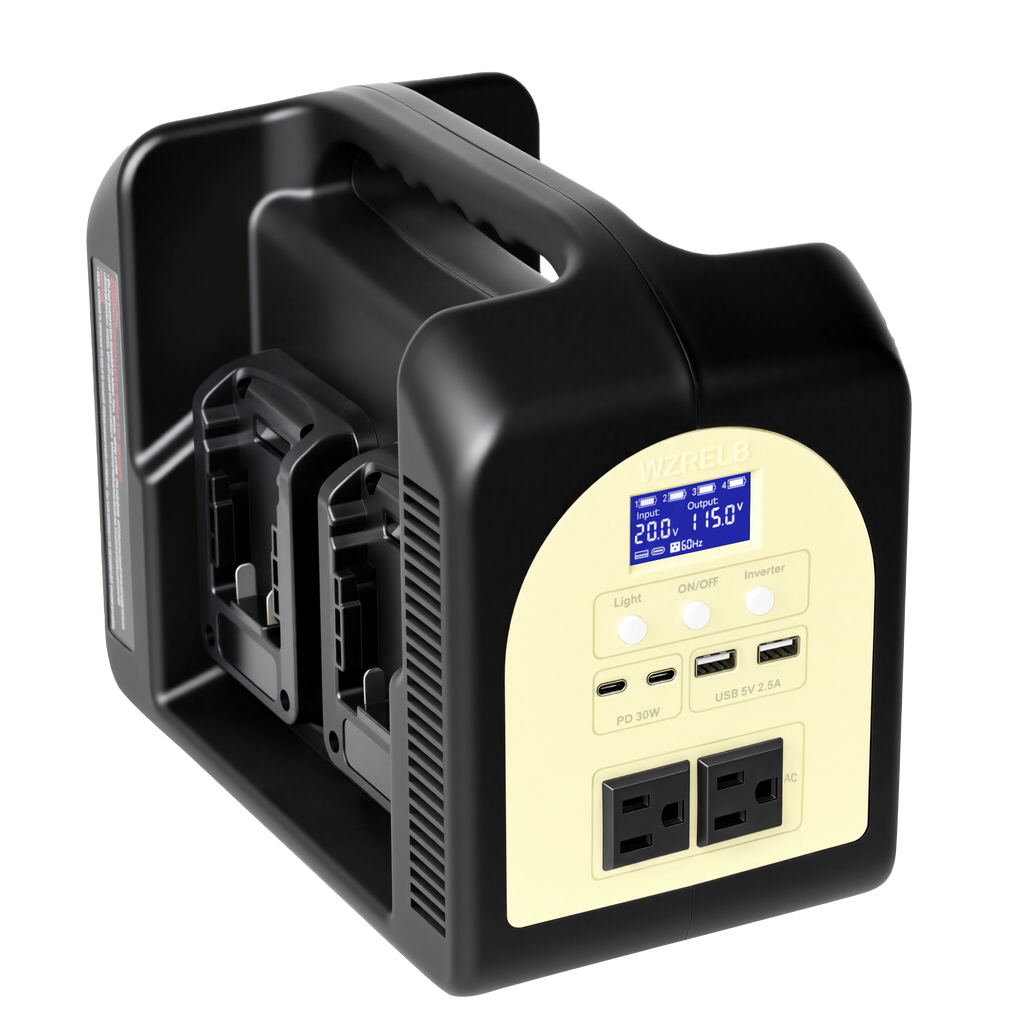

- Six Device Outputs: Two 120V AC outlets, two 5V / 2.5A USB-A ports, and two 30W USB-C PD ports support compatible phones, tablets, laptops, drones, routers, fans, TVs, lights, and small tools.

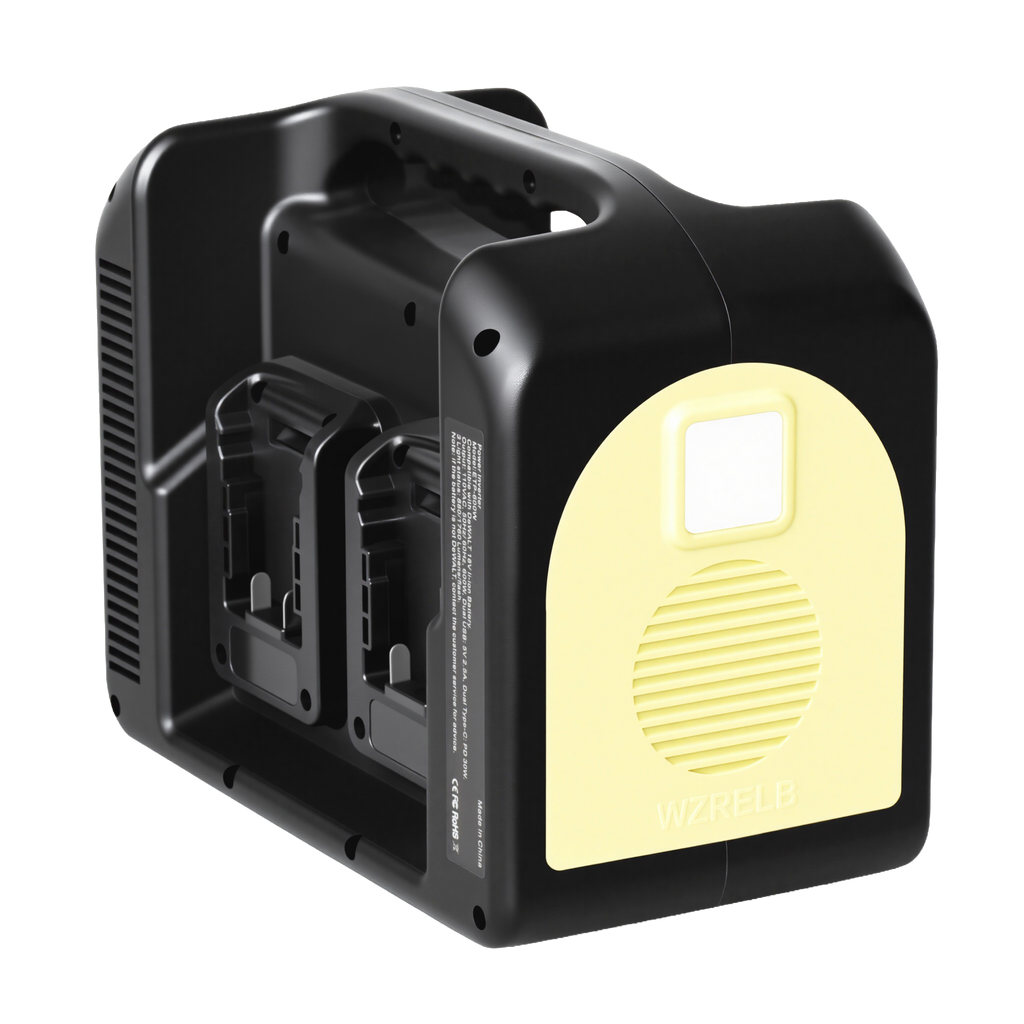

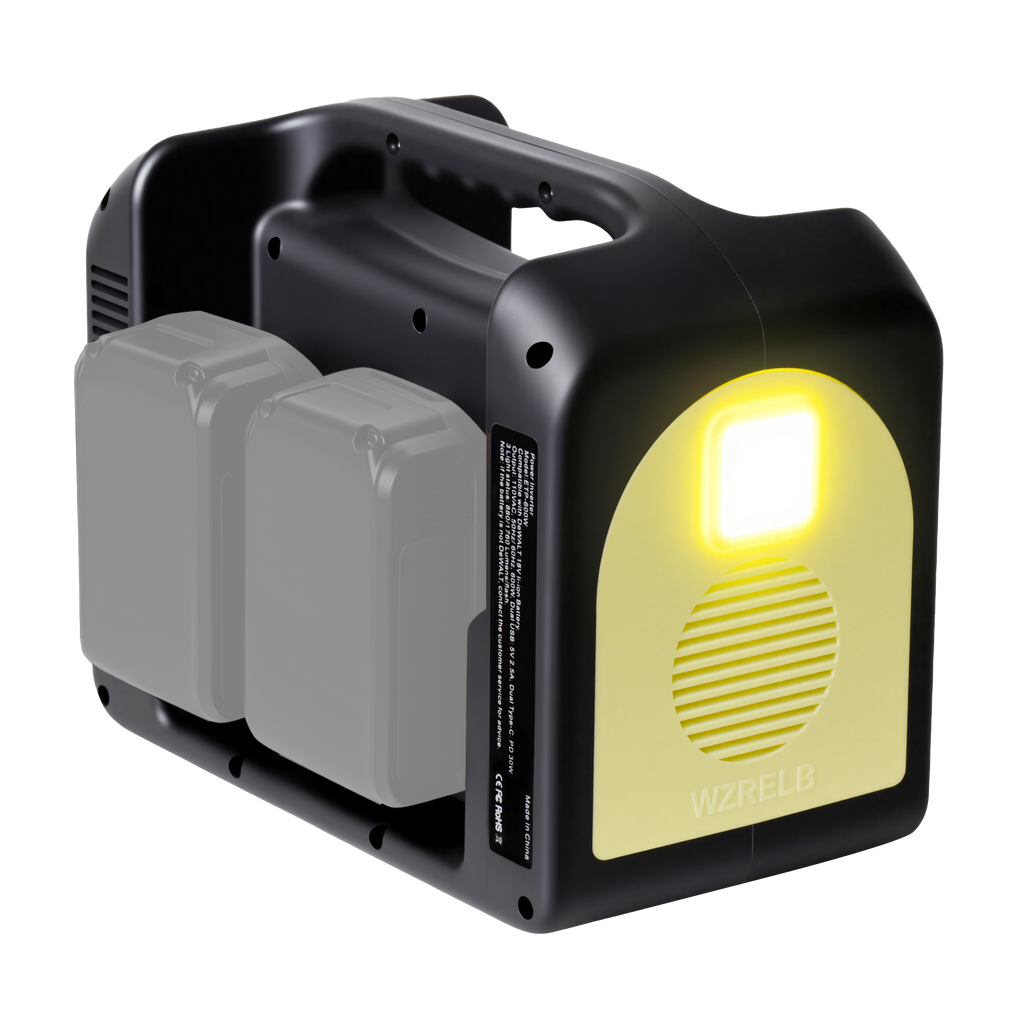

- LCD Display and LED Work Light: The LCD shows active battery channels, input voltage, AC output voltage, output power, frequency, operating symbols, and protection alerts. The LED light provides half-bright, full-bright, and flash modes.
- Protection and Temperature-Controlled Cooling: Low-voltage, over-voltage, overload, over-current, short-circuit, and over-temperature protection help protect the inverter, batteries, and connected equipment.
Before ordering: This product is a power inverter, not a DeWalt battery charger, jump starter, or 12V car power inverter. Batteries and charger are not included.
A DeWalt-compatible portable power station for mobile and backup use
Use the ETP 600W pure sine wave inverter for suitable electronics and small AC loads during camping, tailgating, RV travel, mobile work, and temporary home power outages. Pure sine wave output with THD below 5% supports sensitive electronics more cleanly than a modified sine wave inverter.
ETP series product manual
Download the ETP series general manual (PDF)
This manufacturer-supplied series manual covers multiple power and voltage configurations. It applies to ETP600 as confirmed by Reliable Electric; the current product listing is the 120V AC pure sine wave version. Follow the unit nameplate and the confirmed specifications on the product page. If a general-manual entry differs from your unit, contact support before use.
Batteries and a charger are not included. For battery-model or manual questions, email info@powerreliable.com.
How to estimate battery runtime
Runtime depends on the actual batteries and load. A reliable hour figure requires usable battery energy and the total power drawn from the batteries under the intended operating conditions.
Runtime (hours) ≈ usable battery energy (Wh) ÷ measured total battery-side power (W).
- Battery energy: add the rated Wh of the compatible packs in use, then account for charge level, battery condition and energy unavailable before cutoff. If only voltage and Ah are given, use nominal voltage × Ah as an energy estimate, not the maximum-voltage platform name.
- Total battery-side power: include the connected load and the inverter, fan, lighting and simultaneous USB consumption in the operating mode being measured.
- For an AC-only calculation: battery-side power may be modeled as AC load watts ÷ conversion efficiency + auxiliary DC watts. Use efficiency measured at the intended load, and do not count auxiliary losses twice if they are already included in that efficiency figure.
- Operating conditions: record battery model, number of packs, capacity, state of charge, load behavior, temperature and cutoff conditions. Motor startup and battery discharge limits must also be checked separately.
DEWALT specifies 20V MAX as the maximum initial voltage without a workload and 18V as the nominal voltage. Use the battery’s stated Wh or nominal-energy information for your calculation. DEWALT battery voltage reference.
No fixed runtime hours are stated here. Without measured load-dependent efficiency, auxiliary consumption and usable battery energy, a model-based estimate is not a runtime test or guarantee.
Factory Manufacturing & Testing
Reliable Electric develops and tests power inverters with assembly inspection, functional testing, aging verification, and technical support.
Quality & Compliance Documentation
The ETP product manual displays CE, EMC, RoHS, and FCC marks. Contact us to confirm the certificates or test reports available for your destination market.
Warranty
12 months for covered non-artificial damage. Proof of purchase and product assessment may be required.
Need Portable Power Anywhere? 4-Channel Pure Sine Wave Inverter for DeWalt Batteries
Specification
| Parameter | ETP 600W |
|---|---|
| Battery input | |
| Battery compatibility | DeWalt 20V MAX: DCB200, DCB201, DCB203, DCB204, DCB205 and DCB206; batteries not included |
| Battery channels | 4 channels; insert 1, 2, 3, or 4 compatible batteries |
| Battery input range | 15-21VDC per channel |
| Output with one battery | Up to 250W |
| Output with two or more batteries | Up to 600W continuous |
| AC output and charging ports | |
| Rated / continuous power | 600W |
| AC output | 2 x 120V AC US-style outlets |
| USB-A output | 2 x USB-A, 5V / 2.5A |
| USB-C PD output | 2 x USB-C PD, 30W each |
| Output frequency | 50Hz / 60Hz, user-selectable |
| Waveform | Pure sine wave |
| Total harmonic distortion | THD <5% |
| Conversion efficiency | ≥85% |
| Control, protection, and lighting | |
| LCD information | Battery channel, input voltage, AC output voltage, output power, frequency, fan/light status, and error code |
| LED work light | Half bright / full bright / flash |
| Protection | Low voltage, over voltage, overload, over current, short circuit, and over temperature |
| Cooling | Temperature-controlled cooling fan |
| Physical and environmental | |
| Housing | Flame-retardant plastic and ABS |
| Product size | 10.2 x 6 x 8.4 in |
| Net weight | 4.4 lb |
| Working temperature | -10°C to +40°C / 14°F to 104°F |
| Storage temperature | -20°C to +55°C / -4°F to 131°F |
Frequently Asked Questions
Which specific DeWalt battery models are compatible?
Both ETP500 and ETP600 are compatible with DeWalt 20V MAX models DCB200, DCB201, DCB203, DCB204, DCB205 and DCB206. Check the exact model before ordering. Compatibility with other batteries is not established by the brand name or voltage label alone. Batteries and a charger are not included.
Is this a DeWalt 20V power inverter?
This is a WZRELB ETP power inverter compatible with DeWalt 20V MAX batteries. DeWalt and 20V MAX are trademarks of their respective owner; this product is not affiliated with or endorsed by DeWalt.
Can I use only one battery?
Yes. One compatible battery provides up to 250W. Insert two or more compatible batteries for up to 600W continuous output.
Does this portable power station charge DeWalt batteries?
No. This product converts battery DC power into AC and USB output. It does not charge the batteries, and a battery charger is not included.
Which output ports are included?

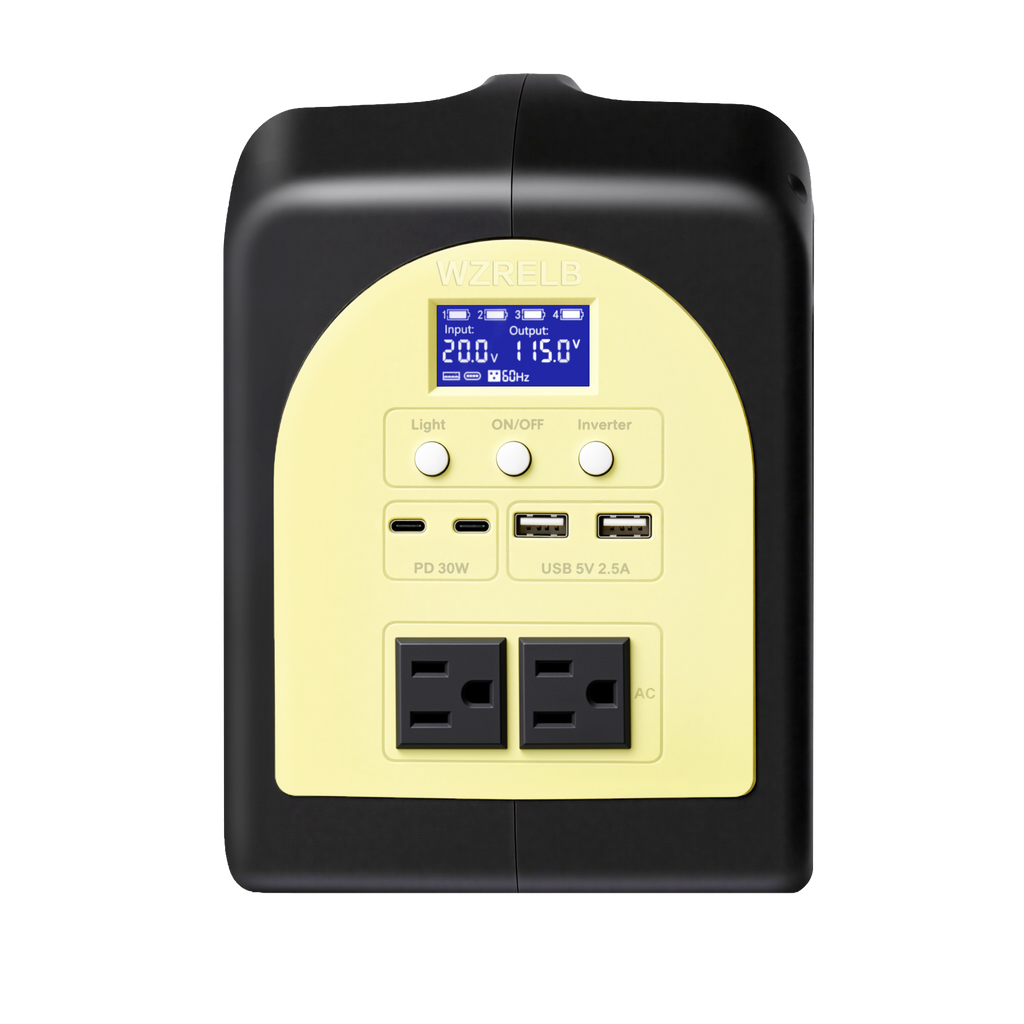

The front panel includes two 120V AC outlets, two 5V / 2.5A USB-A ports, and two 30W USB-C PD ports.
Can I switch between 50Hz and 60Hz?
Yes. The output frequency is user-selectable between 50Hz and 60Hz. Match the setting to the connected equipment.
Can the 600W battery inverter run a refrigerator or air conditioner?
Motor and compressor loads may require several times their running wattage during startup. Compare the appliance startup requirement with the inverter capacity before use; a larger inverter may be required.
How long will the batteries run my equipment?
Use usable battery Wh divided by measured total battery-side watts. A calculation needs battery model, count and capacity, charge level, load-dependent conversion losses, auxiliary power and cutoff conditions. See the runtime method above. No fixed runtime hours are promised.
Why did the inverter shut down?
Check the LCD alert, connected load, battery voltage, and ventilation. Low voltage, high voltage, overload, over current, short circuit, or over temperature can stop output until the cause is corrected.
What is included and what should I confirm before ordering?
The package includes the ETP 600W inverter only. Batteries, battery charger, and AC appliances are not included. Confirm battery compatibility, continuous load, startup load, output frequency, and required ports before ordering.
