5000W DC to AC Pure Sine Wave Inverter Aluminum Shell SE5000

WZRELB Pure Sine Wave Inverter

5000 Watt WZRELB Pure Sine Wave Inverter

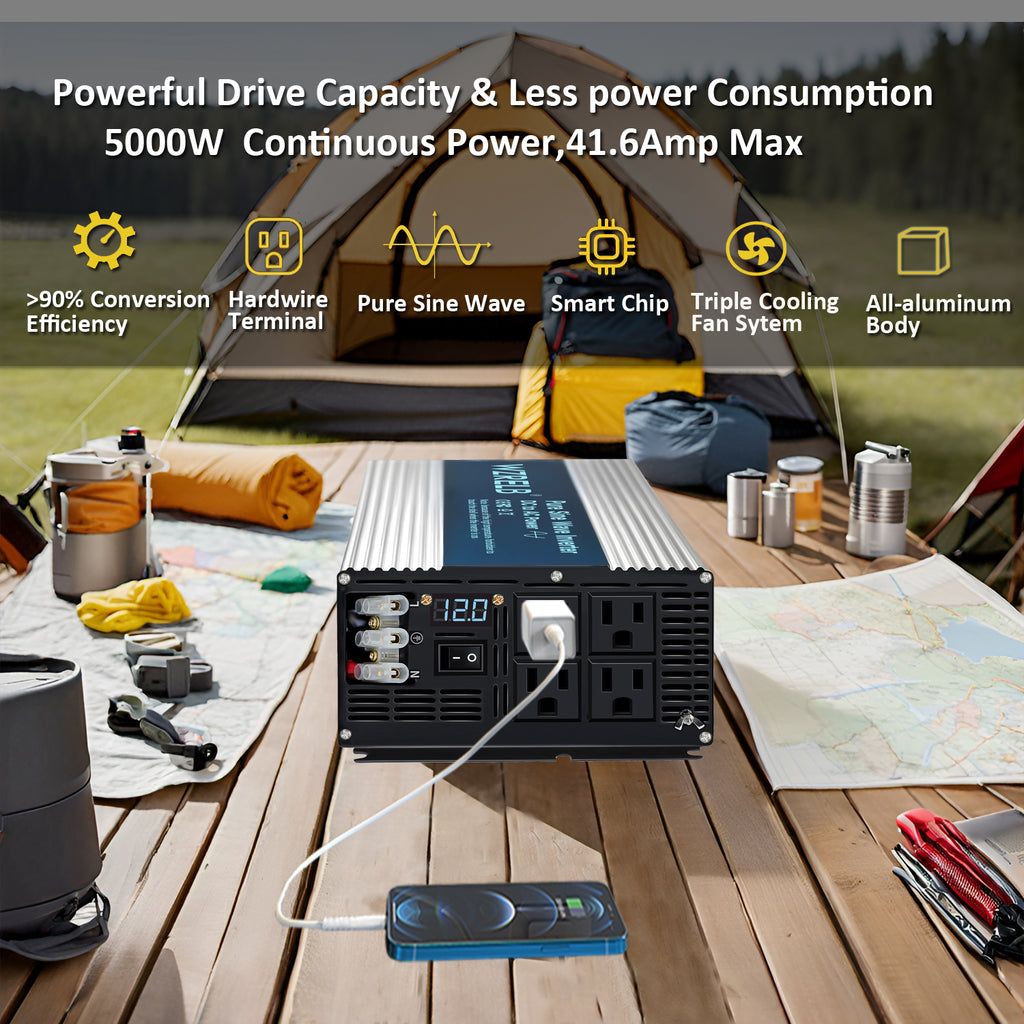

• 5000W Pure Sine Wave Power: The SE5000 delivers 5000W continuous output and 10000W surge output in an aluminum shell. Choose one DC input version: 12V, 24V, 36V, 48V, 60V, 72V, 96V, 110V. AC output options: 100V, 110V, 120V, 220V, 230V, 240V. Frequency: 50Hz or 60Hz. Each unit is built for the selected input voltage, output voltage and frequency; these settings do not auto-switch.

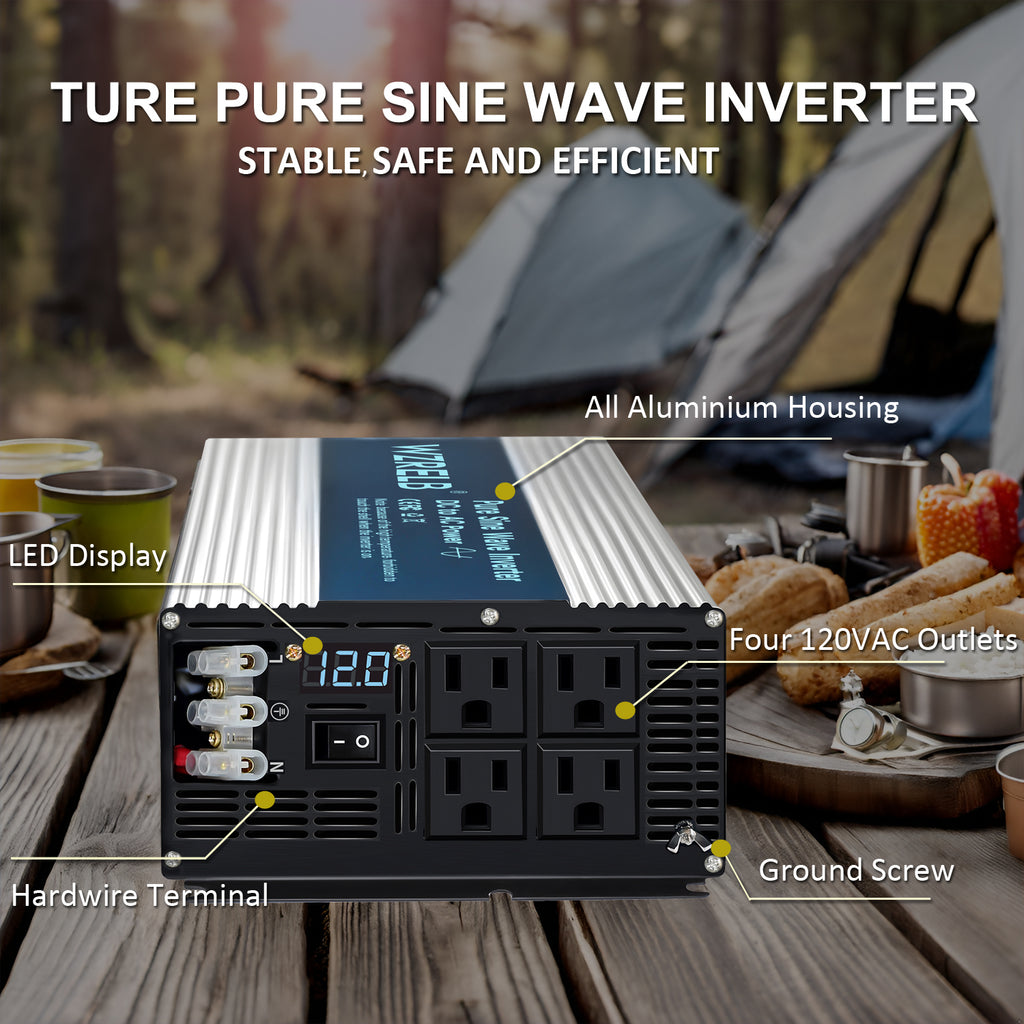

• Intuitive LED Display: Equipped with a clear digital LED display, this inverter allows you to effortlessly monitor the input voltage in real-time, keeping you informed about its operational status for optimal performance and peace of mind.

• Soft Starter Technology: Designed with a built-in soft starter, this inverter ensures a smooth and gradual rise in AC voltage upon startup. This minimizes the impact of inrush current, protecting your connected appliances from potential damage and significantly extending their lifespan.

• Compact and Portable Design: Measuring just 15.7 x 7.2 x 2.95 inches and weighing only 9.2 lbs, this inverter is highly portable and ideal for various applications, including vacations, work trips, camping, and emergency situations. Its quick-connect feature makes it easy to move between trucks, cars, and trailers, ensuring reliable power wherever you go.

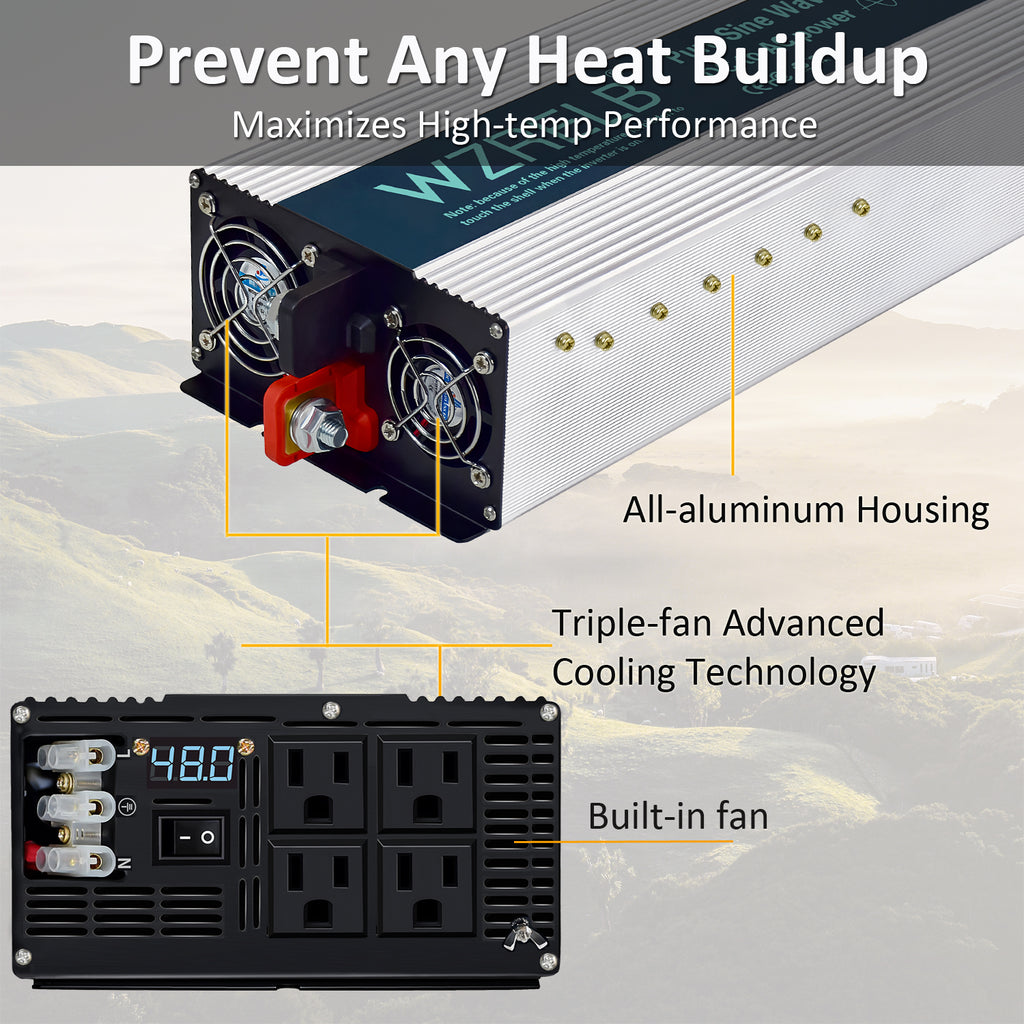

• Durable All-Aluminum Shell: The inverter features a robust all-aluminum casing that provides excellent heat dissipation during operation. This design ensures the inverter can withstand higher temperatures, maintaining reliable performance and delivering consistent power to your devices.

• Note: Due to the high operating temperatures, avoid touching the inverter housing while in use.

Attentions for resistive load applications:

If you need the inverter to run the resistive load (like laptops, TVs, electric cookers, lights), please choose the inverter with continuous power higher than the appliance's rated power.For example, for the power inverter with continuous power 2500w, it is suggested to run the appliance with rated power less than 2500w. It is better to use 80% of the rated power.

Attentions for inductive load applications:

If you use refrigerators, freezers, microwaves, water pumps, air conditioners and other appliances with compressors or motors,please choose the inverter whose continuous power is 3-7 times higher than your appliances.

Warranty: 12 Months for Non-artificial damage.

Inverter Size (inch)	15.7 x 7.2 x 2.95
Net Weight (pound)	9.2
Continuous Output Power	5000W
Model	SE5000
Surge Output Power	10000W
DC Input Voltage	12V / 24V / 36V / 48V / 60V / 72V / 96V / 110V
DC Input Voltage Range	10-15V / 21-30V / 30-45V / 42-60V / 50-75V / 60-90V / 75-115V / 90-135V
AC Output Voltage	100V / 110V / 120V / 220V / 230V / 240V
No Load Current Draw	<40W
Efficiency	85% -- 90%
AC Regulation	3%
Frequency	50Hz or 60Hz
Low Voltage Alarm	9.5-10.5V / 19.5-21.5V / 29.5-31.5V / 43-45V / 50.5-51.5V / 60.5-61.5V / 76-77V / 91-93V
Low Voltage Shut Down	9-10V / 18.5-20.5V / 29-30V / 41.5-42.5V / 50-51V / 60-61V / 74-76V / 90V
Over Load	Shut Off & Recover Manually
Over Voltage Shut Down	15.5V / 30.5V / 45.5V / 61.5V / 75V / 90V / 115V / 135V
Over Voltage Protection	Shut Off Output Automatically
Over Heat Protection	Cooling Fans Run When It's Over 120 F
Cooling Fans	3
Working Temperature	-10℃ TO 50℃
Storage Temperature	-30℃ TO 70℃
Working Humidity	20% TO 90% RH Non-condensing
Start	Soft Start
Total Harmonic Distortion	THD<5%



Choose your configuration: Select the DC input version that matches your battery system (12V / 24V / 36V / 48V / 60V / 72V / 96V / 110V), your AC output voltage (100V / 110V / 120V / 220V / 230V / 240V), and 50Hz or 60Hz. Confirm the required socket type when ordering.

There is no auto-sense of the input and output voltage. Choose one input and one output voltage when ordering.

Note:

The inverter is single-phased ,for 220/230/240VAC version, it can't divide two lines of 110V/115V/120V that sum to 220/230/240VAC.

Our factory supports customized sockets for multiple countries, please leave your message about the scoket type you need.



1. Can I add a fuse or circuit breaker between the input terminal of the inverter and the battery? If so, what specifications are recommended?

Use the DC-rated fuse or circuit breaker specified for the SE5000 version you select. The correct rating depends on the nominal DC voltage, battery fault current, cable rating and installation. Follow the supplied model manual.

Watts divided by DC volts is not a complete fuse-sizing rule. Allow for conversion losses and startup demand, and use a DC voltage rating and interrupting capacity suitable for the battery system. The fuse must also protect the installed cable.

2. Why did sparks appear on the cable and the inverter terminal when connecting the battery to the inverter?

This is normal, and it is not that the inverter is malfunctioning. The inverter has built-in large capacitors, a very small amount of power is still stored inside. When the battery cable is connected to the input of the inverter, sparks may appear, which is a discharge process.Please feel free to use it

3. Why the inverter's output voltage keeps dropping or even shuts down automatically when running loads ?

1) Check that the DC fuse or breaker matches the selected model and input voltage. Do not bypass protection or increase a fuse rating without confirming the cable and inverter requirements.

2) Use all required battery leads and terminals supplied for the selected model. For replacement or extended cables, follow the model manual for conductor size, length and terminal tightening. Cable requirements differ between the 12V, 24V, 36V, 48V, 60V, 72V, 96V and 110V versions.

Note that there is a voltage drop between the battery and the inverter. The thinner and longer the cable, the greater the voltage drops.

3) Confirm that the battery system and BMS can supply the SE5000 continuous input current and the load startup demand at your selected DC voltage. Size battery energy for the required runtime; check voltage at the inverter terminals under load. Do not use a battery-capacity example from a different power or voltage model.

4. Why the inverter can't be turned on?

Pls fully charge the battery before installing the inverter . There are some large capacitors built into the inverter, so it may be in the low-voltage protection or even unable to turn on when the battery power is low

5. Why can't my inverter run the refrigerator?

Compressor are inductive in nature and would be a hard load on the inverter.The vast majority of the refrigerator's power consumption takes place in the compressor, which kicks the instantaneous power in startup phase to 6-7 times ,or even 10 times bigger as its working power. .If you want to power up a refrigerator, we suggest you use 10 times higher power inverter. Please check that the load within the allowable range
