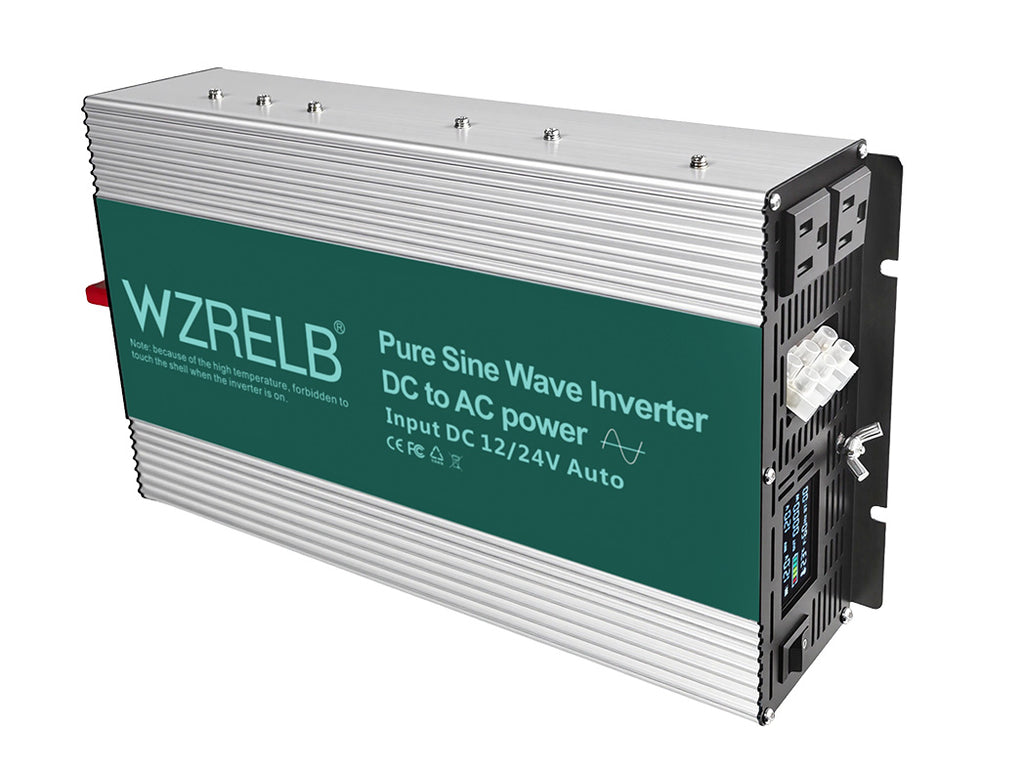

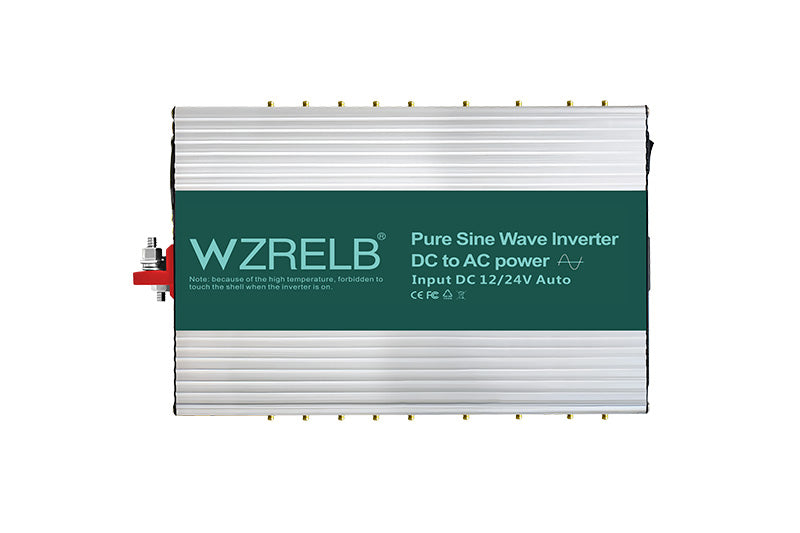

WZRELB Pure Sine Wave Inverter

2500 Watt 12V/24V Auto-Detected Pure Sine Wave Inverter

• 12V/24V Auto-Detected Input: This inverter automatically detects 12VDC or 24VDC battery input, making installation easier and reducing wiring mistakes. It delivers stable 2500W continuous pure sine wave AC power with 5000W surge power, converting battery power into clean household electricity for daily and backup use.

• Pure Sine Wave Output: Produces real pure sine wave output, which is suitable for TVs, computers, battery chargers, kitchen appliances, audio equipment, and many motor-driven loads. Clean waveform helps sensitive electronics run more smoothly and reliably.

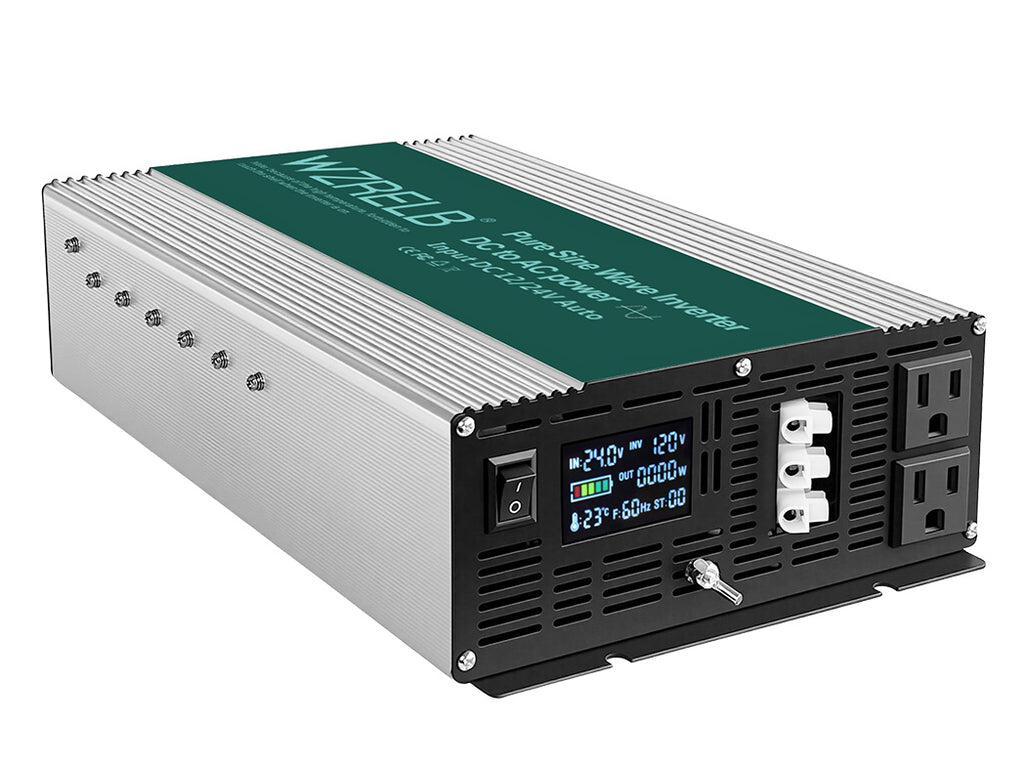

• Intuitive LCD Display: Equipped with an LCD display that shows input voltage, output voltage, output wattage, battery capacity, working temperature, frequency, and fault code in real time, so you can monitor the inverter status at a glance.

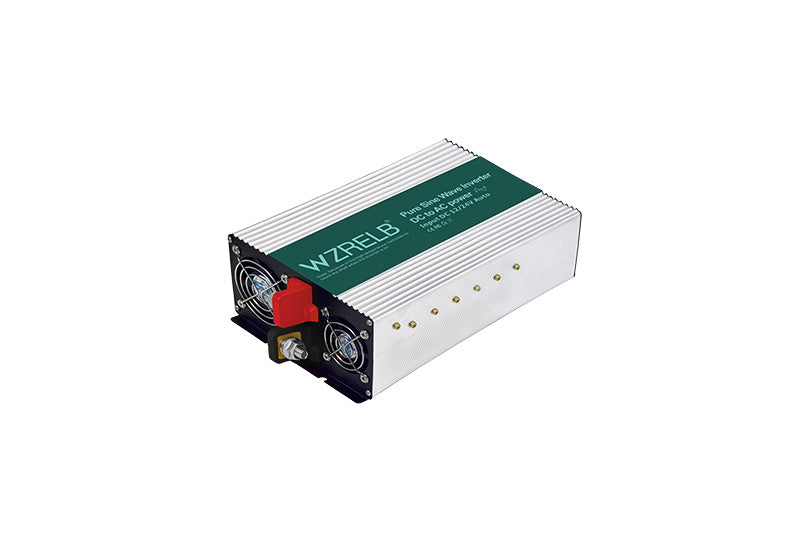

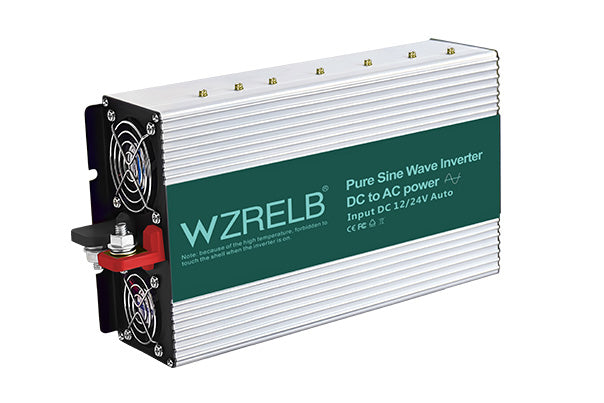

• Intelligent Cooling System: Built with an intelligent temperature-controlled fan and aluminum housing for effective heat dissipation. This design helps the inverter maintain stable performance during long-time operation.

• Comprehensive Protection: Built-in protections include input low voltage protection, input high voltage protection, overload protection, over temperature protection, short circuit protection, and battery reverse connection protection for safer operation.

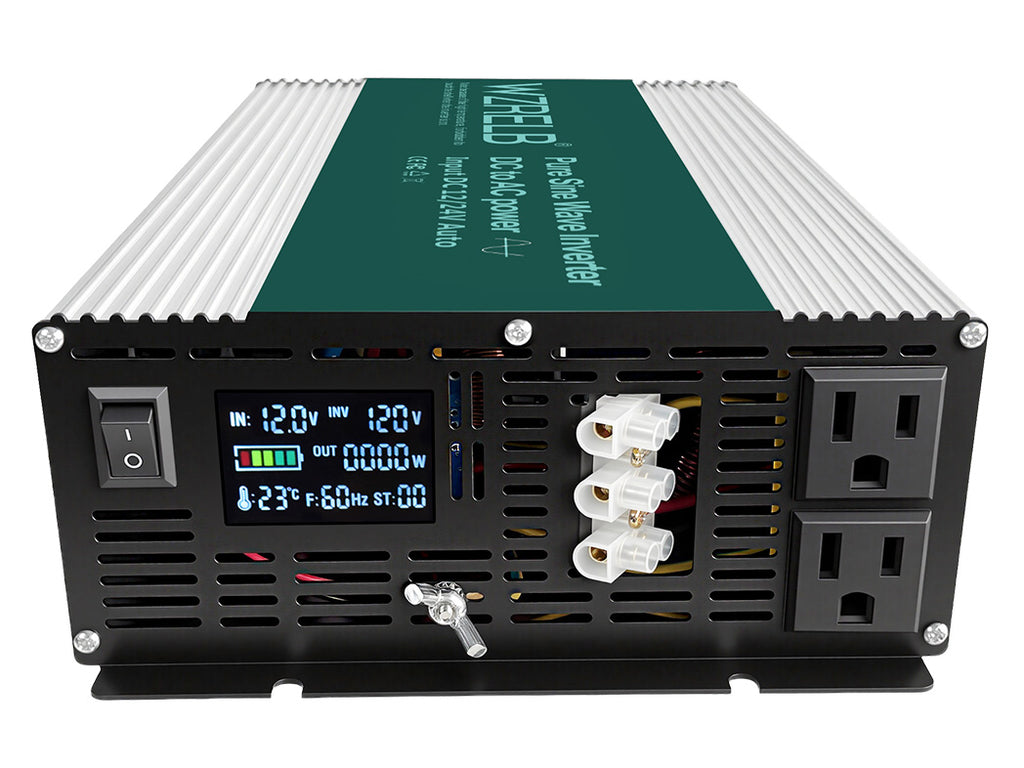

• AC Output Connections: The 2500W model features AC output sockets, ground screw, and wire terminal for AC output. The wire terminal is marked with L line for live, N line for neutral, and G line for ground.

• Note: The inverter can become warm during use. Please keep it in a cool, clean, dry, and well-ventilated place, and do not block the vents or fans.

Attentions for resistive load applications:

If you need the inverter to run resistive loads such as lights, TVs, computers, battery chargers, cookers and similar appliances, please choose the inverter with continuous power higher than the appliance's rated power. For this 2500W inverter, it is better to use about 70% to 80% of the rated power for long-time operation.

Attentions for inductive load applications:

If you use refrigerators, freezers, pumps, air conditioners, compressors and other appliances with motors or compressors, please choose the inverter carefully because startup surge power is much higher than running power. In difficult startup conditions, the manual recommends choosing inverter power about 5-10 times higher than the appliance's working power.

Warranty: 1 Year limited warranty.

Rated Continuous Power	2500W
Surge Output Power	5000W (2 times rated power)
DC Input Voltage	Auto 12V / 24VDC
DC Input Voltage Range	10-15VDC / 20-30VDC
High Battery Shut Down Range	15V / 30V
AC Output Voltage (nominal)	100V / 110V / 120V / 220V / 230V / 240VAC
AC Output Frequency	50±2Hz or 60±2Hz
AC Output Waveform	Pure sine wave
Standby Input Power	Less than 30W
Conversion Efficiency	≥85%
Cooling Method	Intelligent temperature controlled fan
Protection	Input low voltage protection, input high voltage protection, overload protection, temperature protection, short circuit protection, battery reverse protection
Ambient Operating Temperature Range	32°F-104°F / 0°C-40°C
Recommended Use Environment	Indoor use only, cool, clean, dry and well ventilated place
AC Output Connections	AC socket output, ground screw, and wire terminal for AC output
LCD Display Information	Input voltage, output voltage, output wattage, battery capacity, working temperature, frequency, and fault code



Choose your Spec from the size options. Please confirm your required AC output voltage and frequency when ordering.

This inverter automatically detects only the DC input voltage between 12VDC and 24VDC. There is no auto-sense of the AC output voltage or frequency. Please confirm your needed AC output voltage (100VAC or 110VAC or 120VAC or 220VAC or 230VAC or 240VAC) and frequency (50HZ or 60HZ) when ordering.

Note: Please connect the inverter directly to a fully charged battery or stable battery bank.

Do not connect the inverter directly to solar panels or solar charge controllers.

1. How does the 12V/24V auto-detected function work?

The inverter automatically identifies whether the connected battery system is 12VDC or 24VDC at startup. This makes installation easier and avoids selecting the wrong DC input version manually.

2. Can I connect the inverter directly to the battery? Can I connect it to a solar panel?

Yes, connect the inverter directly to a fully charged battery or battery bank with stable voltage. Do not connect the inverter directly to a solar panel or solar charge controller.

3. Why does the inverter output voltage drop or the inverter shut down when running loads?

Common reasons include overload, low battery voltage, high battery voltage, poor cable connection, or over temperature protection. Please check whether the battery is fully charged, whether the DC cable is thick enough and firmly connected, and whether the inverter vents and fans are blocked.

4. Why can't some refrigerators, pumps, or compressors start?

These appliances are inductive loads and need much higher startup surge power than their running power. Please allow enough surge margin when choosing the inverter, especially for compressors and motors.

5. What can I check on the LCD display?

The LCD display can show input voltage, output voltage, output wattage, battery capacity, working temperature, frequency, and fault code.

6. What do the common fault codes mean?

SC: output short circuit; OC: output overcurrent; OL: output overload; OU: battery overvoltage; LU: battery undervoltage; OH: over temperature protection.

7. How should I connect the AC wire terminal?

The wire terminal is marked as L for live, N for neutral, and G for ground. Do not connect a load between L and G or between N and G.

8. Can I use the inverter for long-time operation?

Yes, but for long-time operation it is recommended to use about 70% of the rated power, keep the inverter in a ventilated place, and use a suitable battery bank and cables.
